Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|

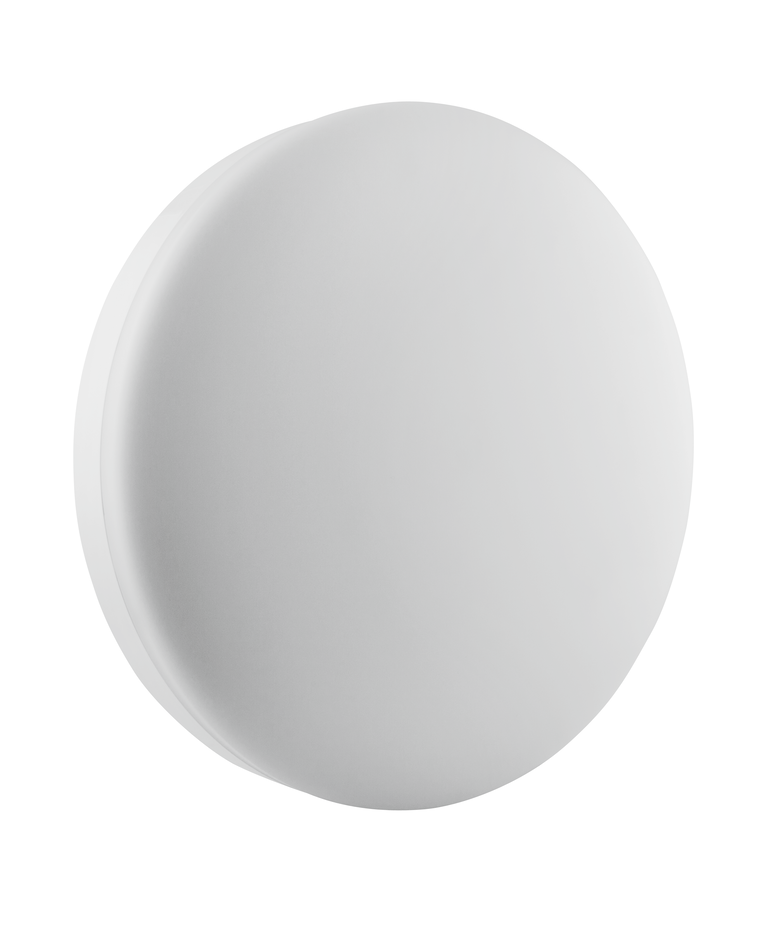

| SF COMPACT IK10 300 24 W 3000 K IP65 WT | 24.00 W | 100000 | 120 ° | 1800 lm | No |
| SF COMPACT IK10 300 24 W 4000 K IP65 WT | 24.00 W | 100000 | 120 ° | 1920 lm | No |
| Nominal wattage | 24.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 110 mA |
| Inrush current | 15.6 A |
| Inrush current time Th50 | 620 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 30 |
| Max. number of luminaires per miniature circuit breaker C10 | 28 |
| Max. number of luminaires per miniature circuit breaker C16 | 45 |
| Power factor λ | ≥0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | Integrated LED driver |
| Luminous flux | 1800 lm |
| Luminous efficacy | 75 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤4 sdcm |
| Luminous intensity | - |
| Low flicker | Yes |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 120 ° |
| Diameter | 300.00 mm |
| Height | 61.00 mm |
| Product weight | 940.00 g |
| Product color | White |
| Housing color | White |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+50 °C |
| Type of connection | Screwless terminal, 3-Pole |
| Type of protection | IP65 |
| Protection class IK (shock resistance) | IK10 |
| Dimmable | No |

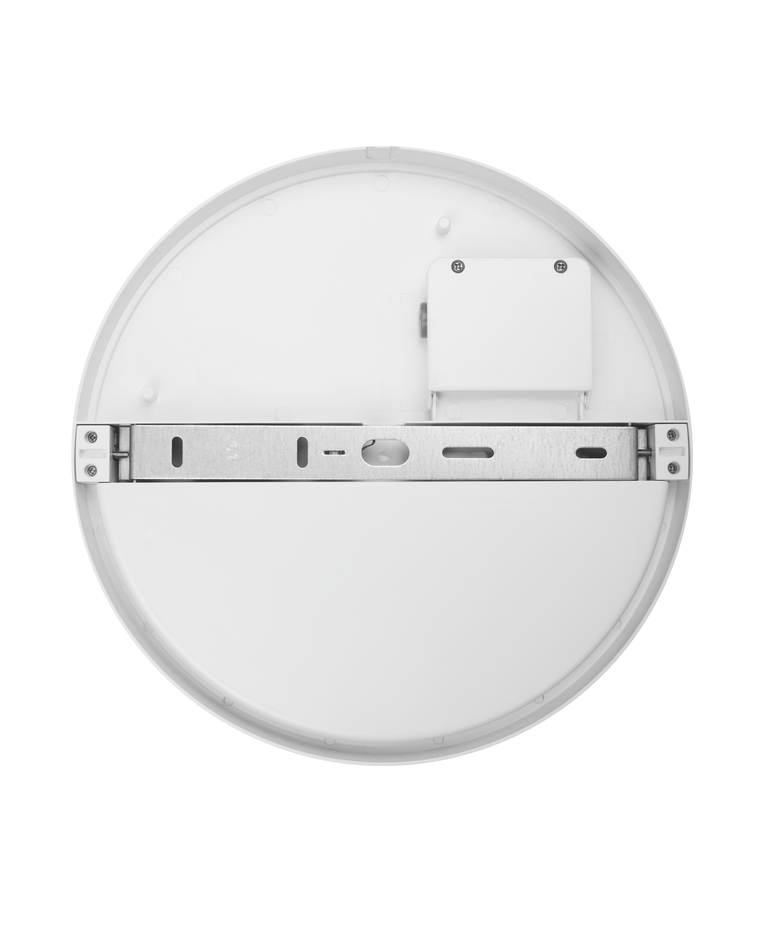

| Mounting type | Surface |
| Mounting location | Ceiling, Wall |
| Application environment | Indoor |
| LED module replaceable | Not replaceable |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 30000 h 1) |
| Lifespan L90/B10 at 25 °C | 15000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Output current | 280 mA |

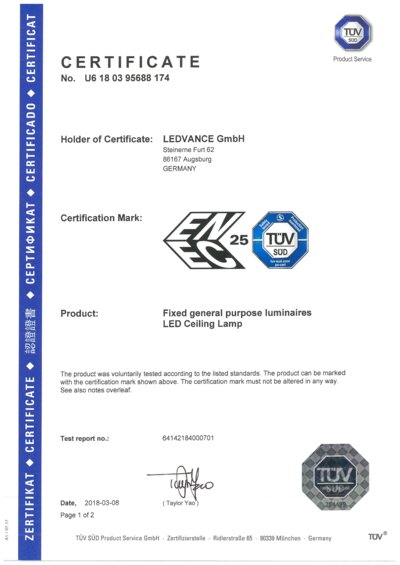

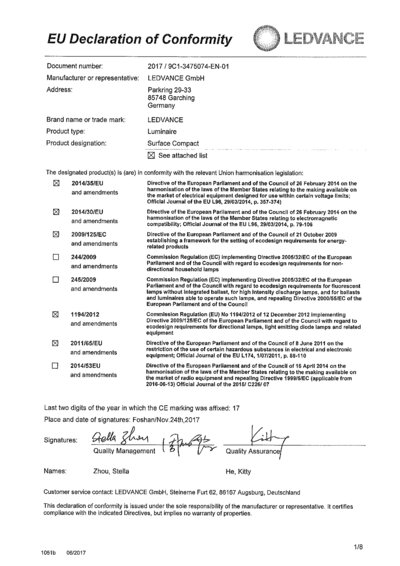

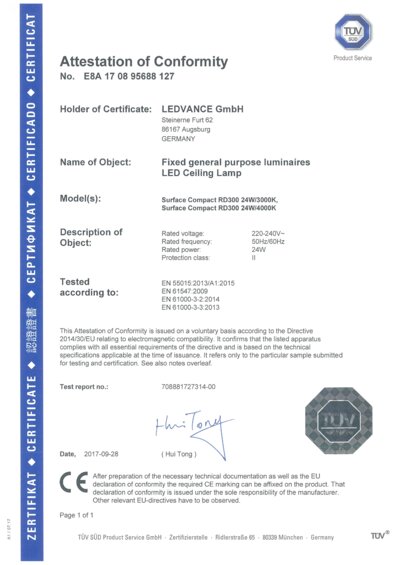

| Standards | CE, CB, ENEC, TÜV SÜD, EAC |
| Luminaire with limited surface temperature, "D sign" | Yes |
| Ball shot safe | No |

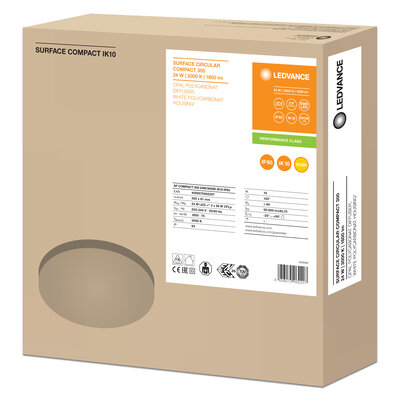

| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075062207 | Folding box 1 |
65 mm x 304 mm x 304 mm | 1073.00 g | 6.01 dm³ |
| 4058075062214 | Shipping box 8 |
555 mm x 320 mm x 325 mm | 9480.00 g | 57.72 dm³ |
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4058075062207 | 7504097 | 4295663 | 3206972 | 941302260 |
