Professional
LED WALL WASHER

LED WALL WASHER

Choose your product version

9 W 3000 K 20 ° x 45 ° 500 mm

9 W 4000 K 20 ° x 45 ° 500 mm

9 W 3000 K 45 ° 500 mm

9 W 4000 K 45 ° 500 mm

12 W 3000 K 20 ° x 45 ° 500 mm

12 W 4000 K 20 ° x 45 ° 500 mm

12 W 3000 K 45 ° 500 mm

12 W 4000 K 45 ° 500 mm

18 W 3000 K 20 ° x 45 ° 1000 mm

18 W 3000 K 20 ° x 45 ° 500 mm

18 W 4000 K 20 ° x 45 ° 500 mm

18 W 4000 K 20 ° x 45 ° 1000 mm

18 W 3000 K 45 ° 500 mm

18 W 3000 K 45 ° 1000 mm

18 W 4000 K 45 ° 500 mm

18 W 4000 K 45 ° 1000 mm

24 W 3000 K 20 ° x 45 ° 500 mm

24 W 3000 K 20 ° x 45 ° 1000 mm

24 W 4000 K 20 ° x 45 ° 500 mm

24 W 4000 K 20 ° x 45 ° 1000 mm

24 W 3000 K 45 ° 500 mm

24 W 3000 K 45 ° 1000 mm

24 W 4000 K 45 ° 1000 mm

24 W 4000 K 45 ° 500 mm

36 W 3000 K 20 ° x 45 ° 1000 mm

36 W 3000 K 20 ° x 45 ° 500 mm

36 W 4000 K 20 ° x 45 ° 1000 mm

36 W 4000 K 20 ° x 45 ° 500 mm

36 W 3000 K 45 ° 500 mm

36 W 3000 K 45 ° 1000 mm

36 W 4000 K 45 ° 1000 mm

36 W 4000 K 45 ° 500 mm

48 W 3000 K 20 ° x 45 ° 1000 mm

48 W 4000 K 20 ° x 45 ° 1000 mm

48 W 3000 K 45 ° 1000 mm

48 W 4000 K 20 ° x 45 ° 1000 mm

72 W 3000 K 20 ° x 45 ° 1000 mm

72 W 4000 K 20 ° x 45 ° 1000 mm

72 W 3000 K 45 ° 1000 mm

72 W 4000 K 45 ° 1000 mm

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
LED WALL WASHER 9 W 3000 K 20 ° x 45 ° 500 mm 9.00 W 30000 20 ° x 45 ° 585 lm No
LED WALL WASHER 9 W 4000 K 20 ° x 45 ° 500 mm 9.00 W 30000 20 ° x 45 ° 630 lm No
LED WALL WASHER 9 W 3000 K 45 ° 500 mm 9.00 W 30000 45 ° 675 lm No
LED WALL WASHER 9 W 4000 K 45 ° 500 mm 9.00 W 30000 45 ° 720 lm No
LED WALL WASHER 12 W 3000 K 20 ° x 45 ° 500 mm 12.00 W 30000 20 ° x 45 ° 780 lm No
LED WALL WASHER 12 W 4000 K 20 ° x 45 ° 500 mm 12.00 W 30000 20 ° x 45 ° 840 lm No
LED WALL WASHER 12 W 3000 K 45 ° 500 mm 12.00 W 30000 45 ° 900 lm No
LED WALL WASHER 12 W 4000 K 45 ° 500 mm 12.00 W 30000 45 ° 960 lm No
LED WALL WASHER 18 W 3000 K 20 ° x 45 ° 1000 mm 18.00 W 30000 20 ° x 45 ° 1170 lm No
LED WALL WASHER 18 W 3000 K 20 ° x 45 ° 500 mm 18.00 W 30000 20 ° x 45 ° 1170 lm No
LED WALL WASHER 18 W 4000 K 20 ° x 45 ° 500 mm 18.00 W 30000 20 ° x 45 ° 1260 lm No
LED WALL WASHER 18 W 4000 K 20 ° x 45 ° 1000 mm 18.00 W 30000 20 ° x 45 ° 1260 lm No
LED WALL WASHER 18 W 3000 K 45 ° 500 mm 18.00 W 30000 45 ° 1350 lm No
LED WALL WASHER 18 W 3000 K 45 ° 1000 mm 18.00 W 30000 45 ° 1350 lm No
LED WALL WASHER 18 W 4000 K 45 ° 500 mm 18.00 W 30000 45 ° 1440 lm No
LED WALL WASHER 18 W 4000 K 45 ° 1000 mm 18.00 W 30000 45 ° 1440 lm No
LED WALL WASHER 24 W 3000 K 20 ° x 45 ° 500 mm 24.00 W 30000 20 ° x 45 ° 1560 lm No
LED WALL WASHER 24 W 3000 K 20 ° x 45 ° 1000 mm 24.00 W 30000 20 ° x 45 ° 1560 lm No
LED WALL WASHER 24 W 4000 K 20 ° x 45 ° 500 mm 24.00 W 30000 20 ° x 45 ° 1680 lm No
LED WALL WASHER 24 W 4000 K 20 ° x 45 ° 1000 mm 24.00 W 30000 20 ° x 45 ° 1680 lm No
LED WALL WASHER 24 W 3000 K 45 ° 500 mm 24.00 W 30000 45 ° 1800 lm No
LED WALL WASHER 24 W 3000 K 45 ° 1000 mm 24.00 W 30000 45 ° 1800 lm No
LED WALL WASHER 24 W 4000 K 45 ° 1000 mm 24.00 W 30000 45 ° 1920 lm No
LED WALL WASHER 24 W 4000 K 45 ° 500 mm 24.00 W 30000 45 ° 1920 lm No
LED WALL WASHER 36 W 3000 K 20 ° x 45 ° 1000 mm 36.00 W 30000 20 ° x 45 ° 2340 lm No
LED WALL WASHER 36 W 3000 K 20 ° x 45 ° 500 mm 36.00 W 30000 20 ° x 45 ° 2340 lm No
LED WALL WASHER 36 W 4000 K 20 ° x 45 ° 1000 mm 36.00 W 30000 20 ° x 45 ° 2520 lm No
LED WALL WASHER 36 W 4000 K 20 ° x 45 ° 500 mm 36.00 W 30000 20 ° x 45 ° 2520 lm No
LED WALL WASHER 36 W 3000 K 45 ° 500 mm 36.00 W 30000 45 ° 2700 lm No
LED WALL WASHER 36 W 3000 K 45 ° 1000 mm 36.00 W 30000 45 ° 2700 lm No
LED WALL WASHER 36 W 4000 K 45 ° 1000 mm 36.00 W 30000 45 ° 2880 lm No
LED WALL WASHER 36 W 4000 K 45 ° 500 mm 36.00 W 30000 45 ° 2880 lm No
LED WALL WASHER 48 W 3000 K 20 ° x 45 ° 1000 mm 48.00 W 30000 20 ° x 45 ° 3120 lm No
LED WALL WASHER 48 W 4000 K 20 ° x 45 ° 1000 mm 48.00 W 30000 20 ° x 45 ° 3360 lm No
LED WALL WASHER 48 W 3000 K 45 ° 1000 mm 48.00 W 30000 45 ° 3600 lm No
LED WALL WASHER 48 W 4000 K 20 ° x 45 ° 1000 mm 48.00 W 30000 20 ° x 45 ° 3840 lm No
LED WALL WASHER 72 W 3000 K 20 ° x 45 ° 1000 mm 72.00 W 30000 20 ° x 45 ° 4680 lm No
LED WALL WASHER 72 W 4000 K 20 ° x 45 ° 1000 mm 72.00 W 30000 20 ° x 45 ° 5040 lm No
LED WALL WASHER 72 W 3000 K 45 ° 1000 mm 72.00 W 30000 45 ° 5400 lm No
LED WALL WASHER 72 W 4000 K 45 ° 1000 mm 72.00 W 30000 45 ° 5760 lm No


LED WALL WASHER 9 W 3000 K 20 ° x 45 ° 500 mm

Product benefits
  • Prewired plug connector (male/female) for easy installation
  • High quality lens made of polycarbonate (PC), secondary optics with tempered glass cover
  • Flexibility and convenience in use thanks to adjustable mounting bracket
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 9.00 W
Nominal voltage 24 V
Nominal current 375.000 mA
Protection class III

Photometrical data

Luminous flux 585 lm
Luminous efficacy 65 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra 80
Standard deviation of color matching ≤5 sdcm
Beam angle 20 ° x 45 °

Dimensions & Weight

Length 500.00 mm
Height 53.00 mm
Width 35.00 mm
Product weight 700.00 g
Cable length 200 mm

Materials & Colors

Product color Silver
Housing color Silver
Body material Glass|Aluminum
Cover material CLEAR GLASS

Application & Mounting

Ambient temperature range -20…+50 °C
Temperature range at storage -20…+70 °C
Type of connection Plug, quick disconnect
Type of protection IP66
Protection class IK (shock resistance) IK05
Dimmable No
Mounting type Surface
Mounting location Wall
Application environment Outdoor

Lifespan

Lifespan L70/B50 at 25 °C 30000 h 1)
Number of switching cycles 30000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Certificates & Standards

Replaceable light source (EPREL) Not replaceable

Additional product data

BEG eligible No

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Prewired plug connector (male/female) for easy installation
  • High quality lens made of polycarbonate (PC), secondary optics with tempered glass cover
  • Flexibility and convenience in use thanks to adjustable mounting bracket
Areas of application
  • Architectural lighting
  • Facade lighting
Product features
  • Extruded aluminum housing and die-cast aluminum end caps
  • Available in two lengths: 500 mm and 1000 mm
  • Available with color temperature: 3,000 K, 4,000 K
  • Input voltage: 24 VDC
  • Initial color consistency: < 5 SDCM
  • Luminaire efficacy: up to 80 lm/W
  • Color rendering index Ra: ≥ 80
  • Type of protection: IP66
  • Impact resistance: IK05
  • Lifetime (L70/B50): up to 30,000 h
  • With CQC certificate
  • Certificate: CB
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075333895 Folding box
1		 510 mm x 55 mm x 50 mm 792.00 g 1.40 dm³
4058075333901 Shipping box
9		 530 mm x 185 mm x 180 mm 7630.00 g 17.65 dm³

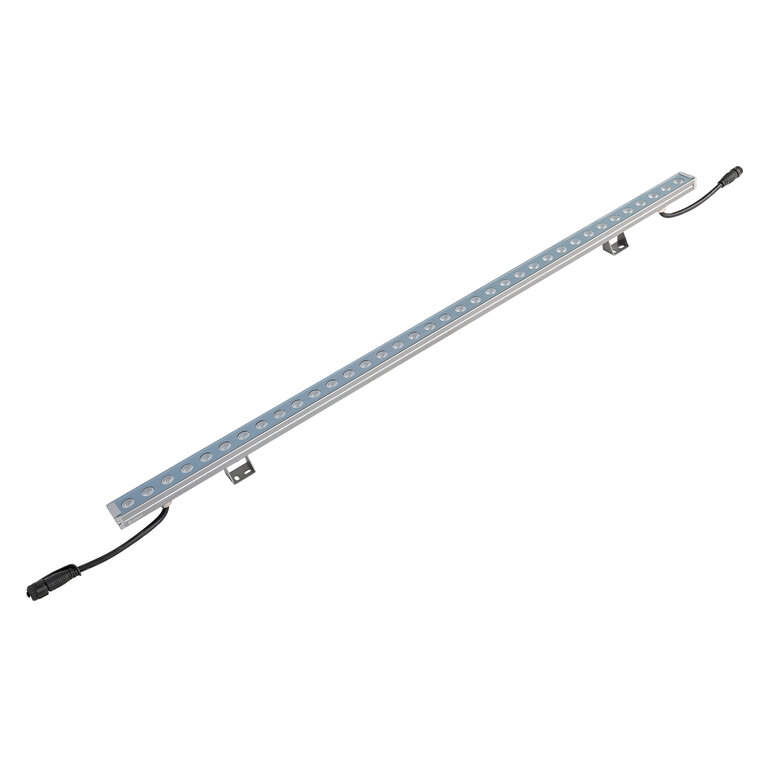

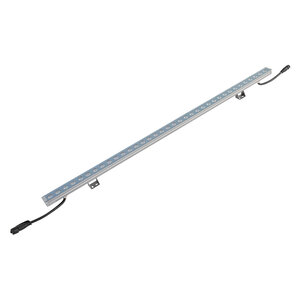

Product Image, Diagonal, White BG
LED WALLWASHER SILVER JPG (898.66 KB)
Product line drawing with numbers
LDVAL WALLWASHER 500 9 W SVG (413.83 KB)
