LED WALL WASHER

LED WALL WASHER

Choose your product version

9 W 3000 K 20 ° x 45 ° 500 mm

9 W 4000 K 20 ° x 45 ° 500 mm

9 W 3000 K 45 ° 500 mm

9 W 4000 K 45 ° 500 mm

12 W 3000 K 20 ° x 45 ° 500 mm

12 W 4000 K 20 ° x 45 ° 500 mm

12 W 3000 K 45 ° 500 mm

12 W 4000 K 45 ° 500 mm

18 W 3000 K 20 ° x 45 ° 1000 mm

18 W 3000 K 20 ° x 45 ° 500 mm

18 W 4000 K 20 ° x 45 ° 1000 mm

18 W 4000 K 20 ° x 45 ° 500 mm

18 W 3000 K 45 ° 500 mm

18 W 3000 K 45 ° 1000 mm

18 W 4000 K 45 ° 500 mm

18 W 4000 K 45 ° 1000 mm

24 W 3000 K 20 ° x 45 ° 500 mm

24 W 3000 K 20 ° x 45 ° 1000 mm

24 W 4000 K 20 ° x 45 ° 500 mm

24 W 4000 K 20 ° x 45 ° 1000 mm

24 W 3000 K 45 ° 500 mm

24 W 3000 K 45 ° 1000 mm

24 W 4000 K 45 ° 1000 mm

24 W 4000 K 45 ° 500 mm

36 W 3000 K 20 ° x 45 ° 1000 mm

36 W 3000 K 20 ° x 45 ° 500 mm

36 W 4000 K 20 ° x 45 ° 1000 mm

36 W 4000 K 20 ° x 45 ° 500 mm

36 W 3000 K 45 ° 1000 mm

36 W 3000 K 45 ° 500 mm

36 W 4000 K 45 ° 1000 mm

36 W 4000 K 45 ° 500 mm

48 W 3000 K 20 ° x 45 ° 1000 mm

48 W 4000 K 20 ° x 45 ° 1000 mm

48 W 3000 K 45 ° 1000 mm

48 W 4000 K 20 ° x 45 ° 1000 mm

72 W 3000 K 20 ° x 45 ° 1000 mm

72 W 4000 K 20 ° x 45 ° 1000 mm

72 W 3000 K 45 ° 1000 mm

72 W 4000 K 45 ° 1000 mm

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
LED WALL WASHER 9 W 3000 K 20 ° x 45 ° 500 mm 9.00 W 30000 20 ° x 45 ° 585 lm No
LED WALL WASHER 9 W 4000 K 20 ° x 45 ° 500 mm 9.00 W 30000 20 ° x 45 ° 630 lm No
LED WALL WASHER 9 W 3000 K 45 ° 500 mm 9.00 W 30000 45 ° 675 lm No
LED WALL WASHER 9 W 4000 K 45 ° 500 mm 9.00 W 30000 45 ° 720 lm No
LED WALL WASHER 12 W 3000 K 20 ° x 45 ° 500 mm 12.00 W 30000 20 ° x 45 ° 780 lm No
LED WALL WASHER 12 W 4000 K 20 ° x 45 ° 500 mm 12.00 W 30000 20 ° x 45 ° 840 lm No
LED WALL WASHER 12 W 3000 K 45 ° 500 mm 12.00 W 30000 45 ° 900 lm No
LED WALL WASHER 12 W 4000 K 45 ° 500 mm 12.00 W 30000 45 ° 960 lm No
LED WALL WASHER 18 W 3000 K 20 ° x 45 ° 1000 mm 18.00 W 30000 20 ° x 45 ° 1170 lm No
LED WALL WASHER 18 W 3000 K 20 ° x 45 ° 500 mm 18.00 W 30000 20 ° x 45 ° 1170 lm No
LED WALL WASHER 18 W 4000 K 20 ° x 45 ° 1000 mm 18.00 W 30000 20 ° x 45 ° 1260 lm No
LED WALL WASHER 18 W 4000 K 20 ° x 45 ° 500 mm 18.00 W 30000 20 ° x 45 ° 1260 lm No
LED WALL WASHER 18 W 3000 K 45 ° 500 mm 18.00 W 30000 45 ° 1350 lm No
LED WALL WASHER 18 W 3000 K 45 ° 1000 mm 18.00 W 30000 45 ° 1350 lm No
LED WALL WASHER 18 W 4000 K 45 ° 500 mm 18.00 W 30000 45 ° 1440 lm No
LED WALL WASHER 18 W 4000 K 45 ° 1000 mm 18.00 W 30000 45 ° 1440 lm No
LED WALL WASHER 24 W 3000 K 20 ° x 45 ° 500 mm 24.00 W 30000 20 ° x 45 ° 1560 lm No
LED WALL WASHER 24 W 3000 K 20 ° x 45 ° 1000 mm 24.00 W 30000 20 ° x 45 ° 1560 lm No
LED WALL WASHER 24 W 4000 K 20 ° x 45 ° 500 mm 24.00 W 30000 20 ° x 45 ° 1680 lm No
LED WALL WASHER 24 W 4000 K 20 ° x 45 ° 1000 mm 24.00 W 30000 20 ° x 45 ° 1680 lm No
LED WALL WASHER 24 W 3000 K 45 ° 500 mm 24.00 W 30000 45 ° 1800 lm No
LED WALL WASHER 24 W 3000 K 45 ° 1000 mm 24.00 W 30000 45 ° 1800 lm No
LED WALL WASHER 24 W 4000 K 45 ° 1000 mm 24.00 W 30000 45 ° 1920 lm No
LED WALL WASHER 24 W 4000 K 45 ° 500 mm 24.00 W 30000 45 ° 1920 lm No
LED WALL WASHER 36 W 3000 K 20 ° x 45 ° 1000 mm 36.00 W 30000 20 ° x 45 ° 2340 lm No
LED WALL WASHER 36 W 3000 K 20 ° x 45 ° 500 mm 36.00 W 30000 20 ° x 45 ° 2340 lm No
LED WALL WASHER 36 W 4000 K 20 ° x 45 ° 1000 mm 36.00 W 30000 20 ° x 45 ° 2520 lm No
LED WALL WASHER 36 W 4000 K 20 ° x 45 ° 500 mm 36.00 W 30000 20 ° x 45 ° 2520 lm No
LED WALL WASHER 36 W 3000 K 45 ° 1000 mm 36.00 W 30000 45 ° 2700 lm No
LED WALL WASHER 36 W 3000 K 45 ° 500 mm 36.00 W 30000 45 ° 2700 lm No
LED WALL WASHER 36 W 4000 K 45 ° 1000 mm 36.00 W 30000 45 ° 2880 lm No
LED WALL WASHER 36 W 4000 K 45 ° 500 mm 36.00 W 30000 45 ° 2880 lm No
LED WALL WASHER 48 W 3000 K 20 ° x 45 ° 1000 mm 48.00 W 30000 20 ° x 45 ° 3120 lm No
LED WALL WASHER 48 W 4000 K 20 ° x 45 ° 1000 mm 48.00 W 30000 20 ° x 45 ° 3360 lm No
LED WALL WASHER 48 W 3000 K 45 ° 1000 mm 48.00 W 30000 45 ° 3600 lm No
LED WALL WASHER 48 W 4000 K 20 ° x 45 ° 1000 mm 48.00 W 30000 20 ° x 45 ° 3840 lm No
LED WALL WASHER 72 W 3000 K 20 ° x 45 ° 1000 mm 72.00 W 30000 20 ° x 45 ° 4680 lm No
LED WALL WASHER 72 W 4000 K 20 ° x 45 ° 1000 mm 72.00 W 30000 20 ° x 45 ° 5040 lm No
LED WALL WASHER 72 W 3000 K 45 ° 1000 mm 72.00 W 30000 45 ° 5400 lm No
LED WALL WASHER 72 W 4000 K 45 ° 1000 mm 72.00 W 30000 45 ° 5760 lm No


LED WALL WASHER 72 W 4000 K 20 ° x 45 ° 1000 mm

Product benefits
  • Prewired plug connector (male/female) for easy installation
  • High quality lens made of polycarbonate (PC), secondary optics with tempered glass cover
  • Flexibility and convenience in use thanks to adjustable mounting bracket
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 72.00 W
Nominal voltage 24 V
Nominal current 3000.000 mA
Protection class III

Photometrical data

Luminous flux 5040 lm
Luminous efficacy 70 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra > 80
Standard deviation of color matching ≤5 sdcm
Beam angle 20 ° x 45 °

Dimensions & Weight

Length 1000.00 mm
Height 78.70 mm
Width 70.00 mm
Product weight 2500.00 g
Cable length 200 mm

Materials & Colors

Product color Silver
Housing color Silver
Body material Glass|Aluminum
Cover material CLEAR GLASS

Application & Mounting

Ambient temperature range -20…+50 °C
Temperature range at storage -20…+70 °C
Type of connection Plug, quick disconnect
Type of protection IP66
Protection class IK (shock resistance) IK05
Dimmable No
Mounting type Surface
Mounting location Wall
Application environment Outdoor
LED module replaceable Not replaceable

Lifespan

Lifespan L70/B50 at 25 °C 30000 h 1)
Number of switching cycles 30000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Product benefits
  • Prewired plug connector (male/female) for easy installation
  • High quality lens made of polycarbonate (PC), secondary optics with tempered glass cover
  • Flexibility and convenience in use thanks to adjustable mounting bracket
Areas of application
  • Architectural lighting
  • Facade lighting
Product features
  • Extruded aluminum housing and die-cast aluminum end caps
  • Available in two lengths: 500 mm and 1000 mm
  • Available with color temperature: 3,000 K, 4,000 K
  • Input voltage: 24 VDC
  • Initial color consistency: < 5 SDCM
  • Luminaire efficacy: up to 80 lm/W
  • Color rendering index Ra: ≥ 80
  • Type of protection: IP66
  • Impact resistance: IK05
  • Lifetime (L70/B50): up to 30,000 h
  • With CQC certificate
  • Certificate: CB
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075334694 Folding box
1		 1,010 mm x 85 mm x 75 mm 2745.00 g 6.44 dm³
4058075334700 Shipping box
4		 1,030 mm x 185 mm x 180 mm 11826.00 g 34.30 dm³

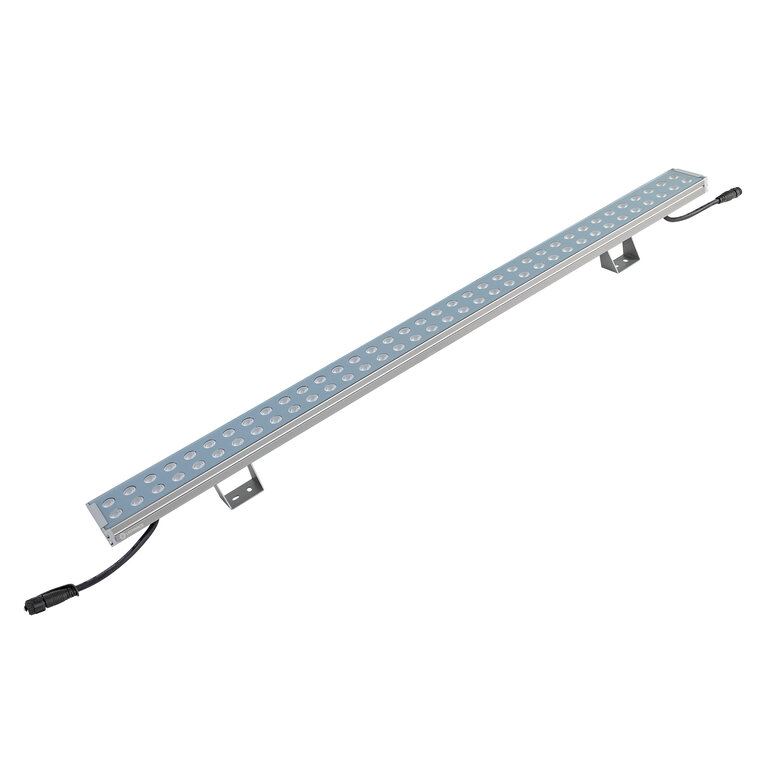

Product Image, Diagonal, White BG
LED WALLWASHER SILVER JPG (1.07 MB)
Product line drawing with numbers
LDVAL WALLWASHER 1000 72W SVG (505.43 KB)
