Professional
UVC DULUX S-E

UVC DULUX S-E

Choose your product version

Phase out

7W 2G7

Phase out

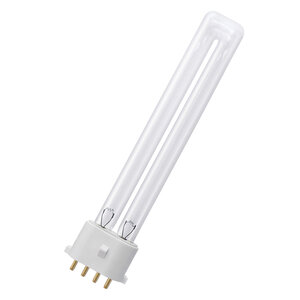

9W 2G7

Phase out

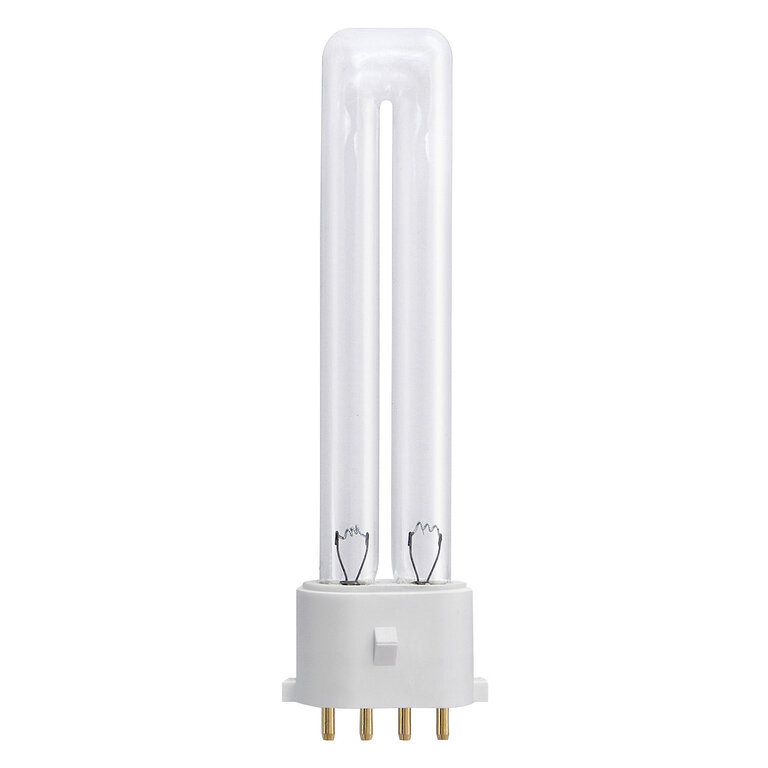

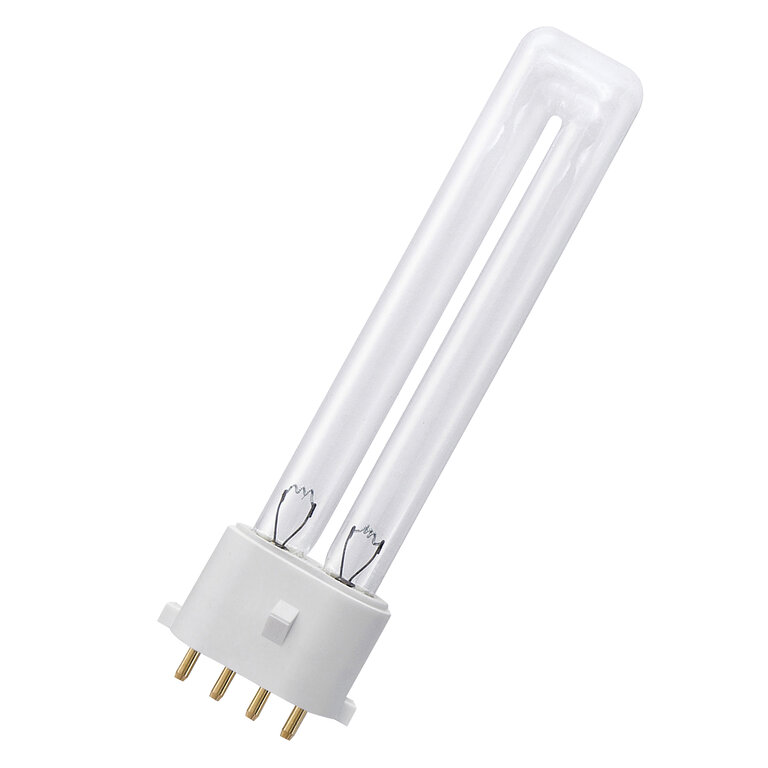

UVC DULUX S/E 7W 2G7

Product benefits
  • Effective and environment-friendly disinfection without chemicals
  • Ozone-free
  • Low mercury content
  • Long lifetime due to special coating (up to 9,500 h)

PRODUCT DETAILS

Electrical data

Nominal wattage 7 W
Nominal voltage 46 V
Nominal current 175 mA
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz

Photometrical data

Radiated power 200…280 nm (UVC) 1.9 W

Light technical data

Starting time 30.0 s

Dimensions & Weight

Overall length 121.80 mm
Length 121.80 mm
Length with base excl. base pins/connection 115,00 mm
Outer bulb [PICOS] T11
Diameter 11.00 mm
Tube diameter 11,0 mm
Product weight 18.00 g

Temperatures & operating conditions

Ambient temperature range +10…+50 °C

Lifespan

Nominal lamp life time 9500 h

Additional product data

Base (standard designation) 2G7
Mercury content 1.6 mg

Capabilities

Dimmable No
Burning position Any

Certificates & Standards

Standards CE
Photobiological safety group acc. to EN62778 RG3

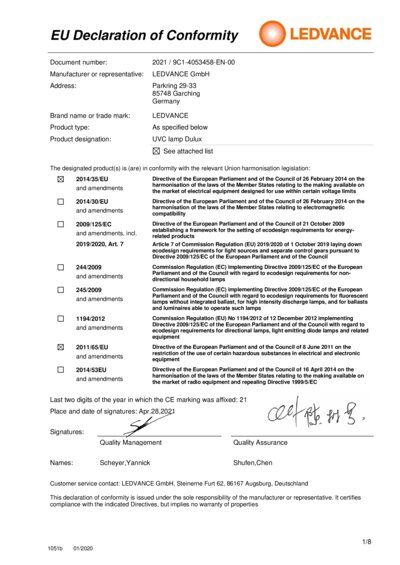

Country-specific categorizations

Order reference UVC DULUXS/E 7W
Product benefits
  • Effective and environment-friendly disinfection without chemicals
  • Ozone-free
  • Low mercury content
  • Long lifetime due to special coating (up to 9,500 h)
Areas of application
  • Efficient disinfecting of air, water and surfaces
Product features
  • High UV-C radiance at 254 nm
Safety advice
  • WARNING: This lamp emits dangerous UV-C radiation (risk group 3 acc. EN 62471) for germicidal use only. Direct exposure to UV-C radiation poses a health hazard for humans, animals and plants and may damage skin and eyes. Avoid any voluntary or involuntary exposure. Users must protect their eyes and skin to avoid injury. UV-C radiation can further cause the discoloration or even structural modification of certain natural and synthetic materials near its source. Install and operate the UV-C lamp only as described in the user manual of the UV-C device. Put adequate safeguards in place to ensure safe installation and operation. Please refer to the user manual of the UV-C device for more details. Not intended for general lighting or medical applications. This product contains mercury. Disclaimer: Our UV-C lamps are not certified or approved as medical devices and are therefore neither intended nor to be used as such. The use of our UV-C lamps contributes to reducing the concentration of microorganisms such as bacteria and viruses in the air and on exposed surfaces. However, surfaces which are not directly exposed to UV-C radiation will either not be disinfected at all or with a significantly lower effectiveness. LEDVANCE does not warrant or guarantee that use of the UV-C lamps will protect or prevent any user from infection and/or contamination with any microorganism. The use of UV-C radiation does not replace protective measures, airing of the premises, cleaning, and other disinfection measures. Our UV-C lamp pose a minimum risk when installed and operated by professionals trained in their use. LEDVANCE denies all responsibility and liability for any claim or damage arising from or related to any use of the UV-C lamps outside of their intended use or contrary to their installation and operation instructions as described in the user instructions or user manual of the UV-C device.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075595842 Folding box
1
38 mm x 22 mm x 127 mm 0.11 dm³
4058075595859 Shipping box
10
126 mm x 86 mm x 143 mm 299.00 g 1.55 dm³
EAN STK number
4058075595842 4933219
