Product description |
---|

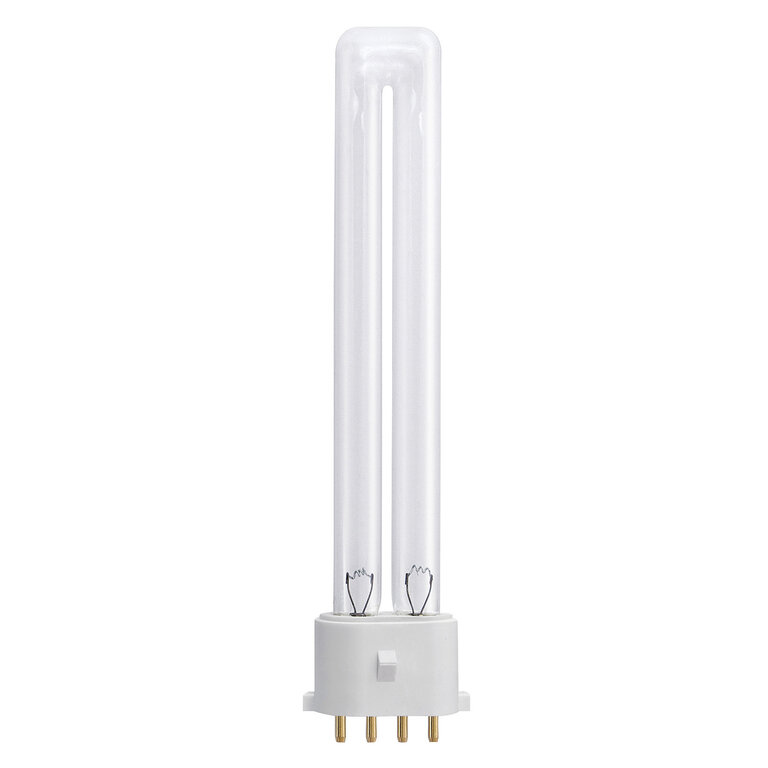

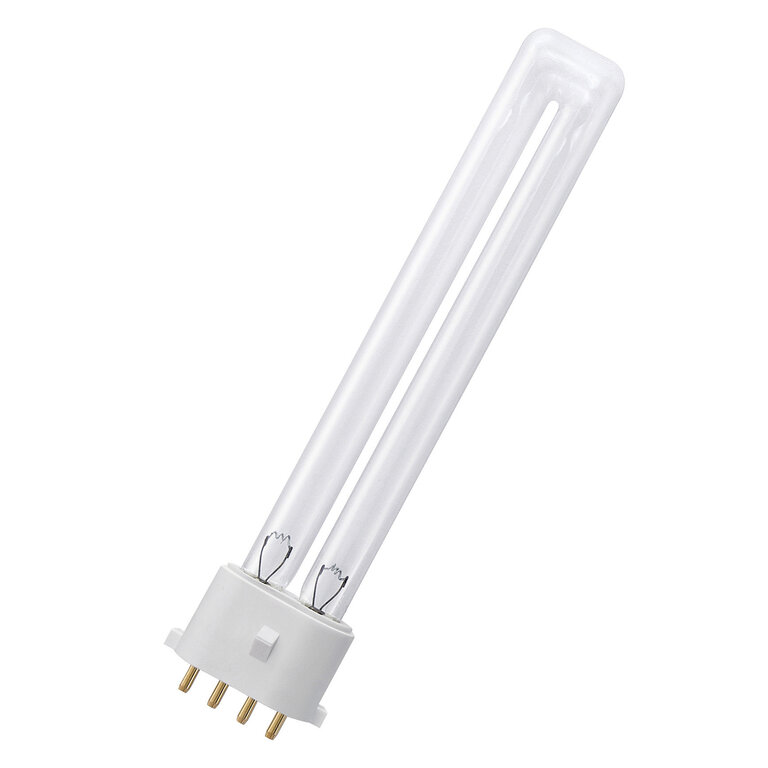

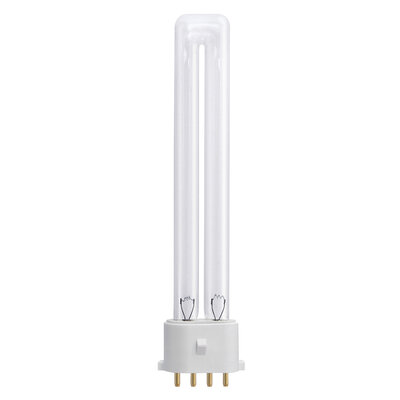

UVC DULUX S/E 7W 2G7 |
UVC DULUX S/E 9W 2G7 |
Nominal wattage | 9 W |
Nominal voltage | 60 V |
Nominal current | 170 mA |
Operating frequency | 50…60 Hz |
Mains frequency | 50…60 Hz |
Radiated power 200…280 nm (UVC) | 2,6 W |
Starting time | 30.0 s |
Overall length | 151.80 mm |
Length | 151.80 mm |
Length with base excl. base pins/connection | 145 mm |
Outer bulb [PICOS] | T11 |
Diameter | 11.00 mm |
Tube diameter | 11,0 mm |
Product weight | 20.6 g |
Ambient temperature range | +10…+50 °C |
Nominal lamp life time | 9500 h |
Base (standard designation) | 2G7 |
Mercury content | 1.6 mg |
Dimmable | No |
Burning position | Any |
Standards | CE |
Photobiological safety group acc. to EN62778 | RG3 |
Order reference | UVC DULUXS/E 9W |
Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
---|---|---|---|---|
4058075595903 | Folding box 1 |
22 mm x 38 mm x 157 mm | 0.13 dm³ | |
4058075595910 | Shipping box 10 |
126 mm x 86 mm x 173 mm | 362.00 g | 1.87 dm³ |
EAN | STK number |
---|---|
4058075595903 | 4933220 |
