Outdoor lamps HQL LED PRO

Customized solutions for
outdoor lighting of the future

Since 2015 mercury vapor lamps are no longer permitted to be placed on the market in the EU. Good that OSRAM HQL LED lamps offer an innovative, economic alternative as a direct and simple replacement. In their third generation all HQL LED PRO lamps are also available in a warm-white light color. For use in historical and architectural luminaires a new 2,000 lm version with LEDs on the top is available.

Your main benefits

Real retrofit solution for HQL replacement without rewiring
No restriction of burning position
Replacement for HQL 50 - 250 W and NAV 70 / 210 W (for NAV the ignitor must be bridged)
Payback in 12 months possible

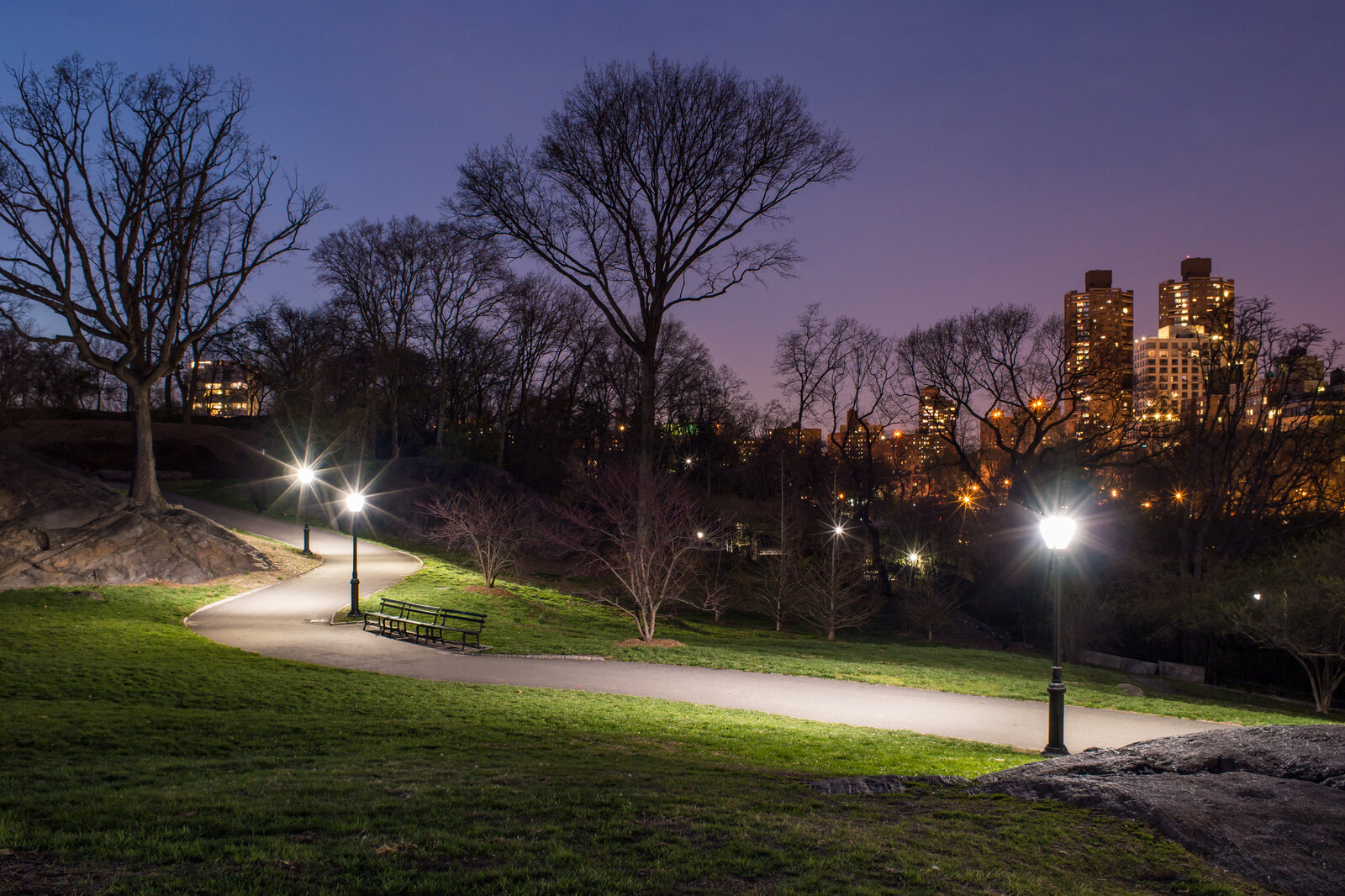

We recommend OSRAM HQL LED PRO for parking facilities, side streets and parks. Models with warm-white light (2,700 K) are ideal for replacement of conventional NAV lamps, providing very pleasant lighting. This means you are choosing future oriented solutions that combine maximum energy efficiency, good light and excellent ease of maintenance.

Benefits of the third product generation

All lamps available in two light colors (4000 K, 2700 K)
New decorative 2,000 lm type with LEDs on top for historical and architectural luminaires
Efficiency of up to 133 lm/W
Up to 78 % energy savings compared with traditional HQL lamps with comparable light intensity
Excellent protection thanks to IP65
CCG compatibility, also operation at line voltage
Long lifespan of 50,000 hours (L70/B50)
Excellent value for the money

Further product features

Approved for vertical and horizontal burning position
Luminous flux of 2,000 to 13,000 lm
Effective thermal management (operating temperature –20 to +60 °C; 6,000 lm, 13,000 lm: –20 to +50 °C)
Simple replacement thanks to E27 and E40 bases
Instant 100 % light, no warm-up time
5 years LEDVANCE guarantee

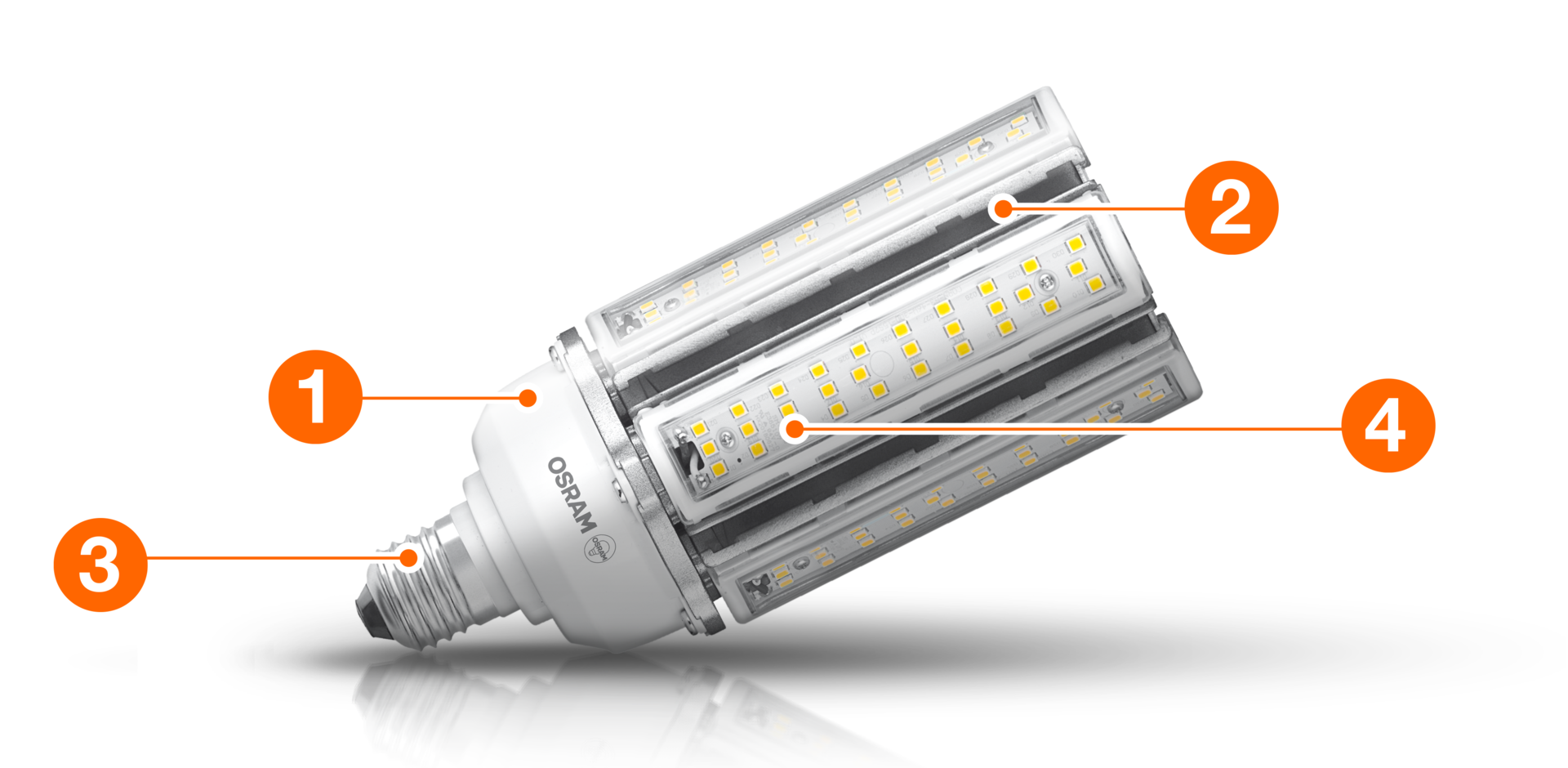

Robust LED lamp for demanding jobs

Lifespan of up to 50,000 h (L70/B50)
Ambient temperature Ta -20° to +60°C (3,000 lm/4,000 lm); Ta -20° to +50°C (6,000 lm/13,000 lm)
Storage temperature Ts -30° to +80°C

E27 and E40
220 – 240 VAC
50/60 Hz
Power factor > 0.9
Up to 4 kV surge protection
Type of protection: IP65

Passive cooling through aluminum heat sink

2,000, 3,000, 4,000, 6,000 or 13,000 lm
2,700K and 4,000K in CRI80
Beam angle 360°

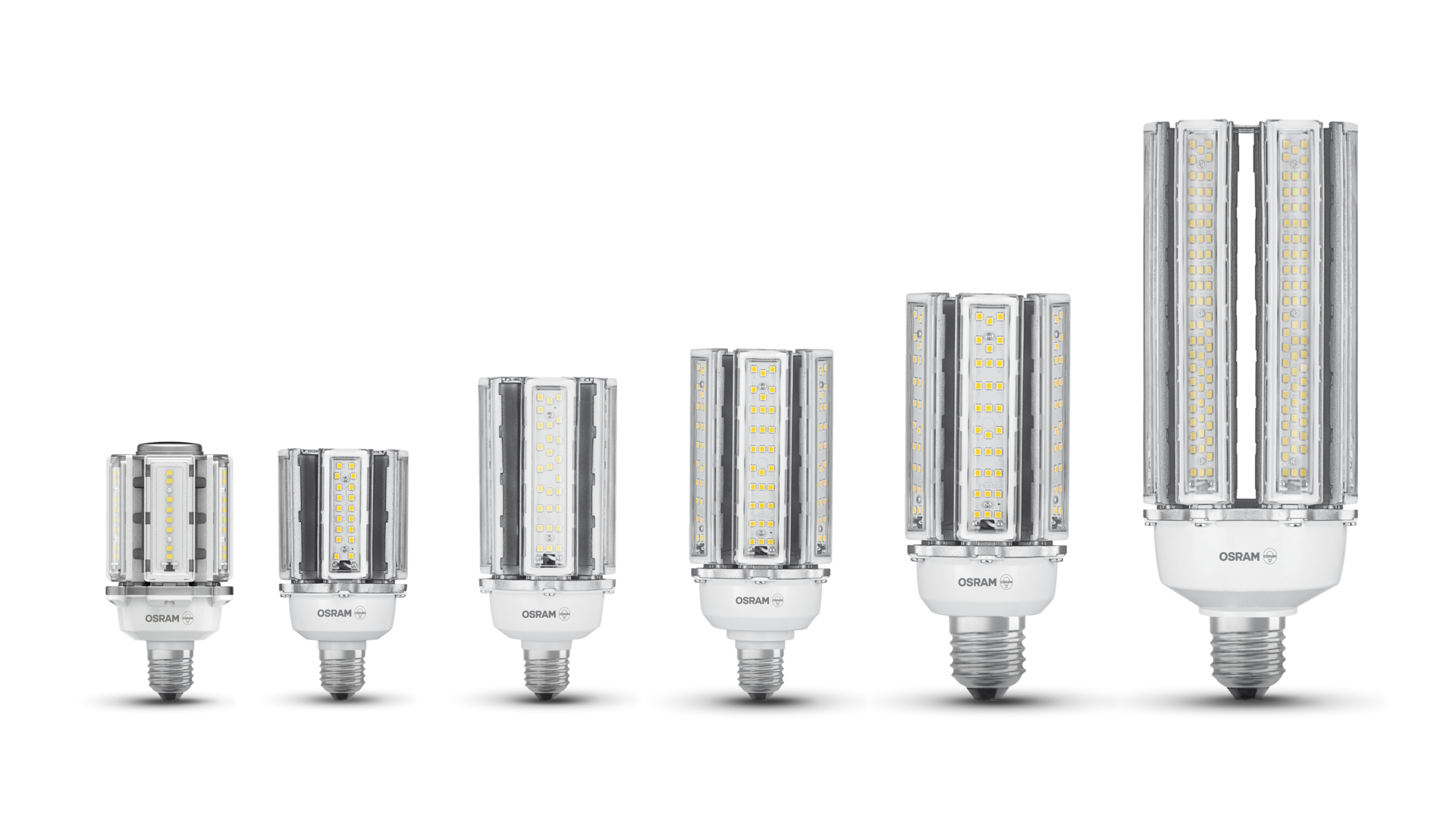

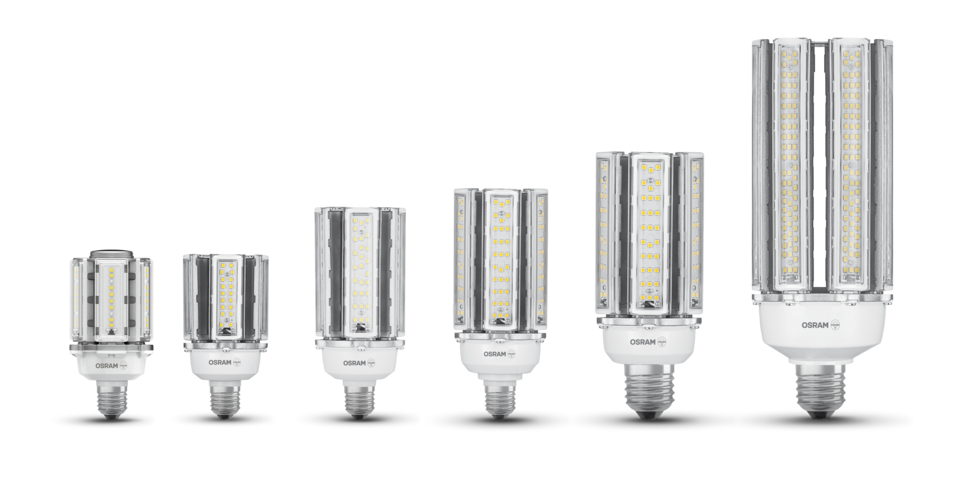

Product overview

Type	OSRAM HQL LED PRO 1800 / 2000 lm E27	OSRAM HQL LED PRO 2700 / 3000 lm E27	OSRAM HQL LED PRO 3600 / 4000 lm E27	OSRAM HQL LED PRO 5400 / 6000 lm E27	OSRAM HQL LED PRO 5400 / 6000 lm E40	OSRAM HQL LED PRO 11700 / 13000 lm E40
EAN	4058075362949 4058075362963	4058075124806 4058075124783	4058075124844 4058075124820	4058075124868 4058075127234	4058075124967 4058075124943	4058075125001 4058075124981
Luminous flux	1,800 lm / 2,000 lm	2,700 lm / 3,000 lm	3,600 lm / 4,000 lm	5,400 lm / 6,000 lm	5,400 lm / 6,000 lm	11,700 lm / 13,000 lm
Rated wattage	16 W	23 W	30 W	46 W	46 W	95 W
Light color	2,700 K / 4,000 K	2,700 K / 4,000 K	2,700 K / 4,000 K	2,700 K / 4,000 K	2,700 K / 4,000 K	2,700 K / 4,000 K
Base	E27	E27	E27	E27	E40	E40
Diameter	75 mm	75 mm	75 mm	80 mm	80 mm	110 mm
Length	153 mm	145 mm	170 mm	195 mm	204 mm	270 mm
Weight	460 g	410 g	480 g	670 g	690 g	1,400 g
Lifespan	50,000 h	50,000 h	50,000 h	50,000 h	50,000 h	50,000 h
Type of protection	IP65	IP65	IP65	IP65	IP65	IP65

HQL LED PRO - direct replacement for HQL and NAV lamps

Type	OSRAM HQL LED PRO 2000 lm 16 W E27	OSRAM HQL LED PRO 3000lm 23W E27	OSRAM HQL LED PRO 4000lm 30W E27	OSRAM HQL LED PRO 6000lm 46W E27	OSRAM HQL LED PRO 6000lm 46W E40	OSRAM HQL LED PRO 13000lm 95W E40
HQL 50 W 1800 lm	o
HQL 80 W 3800 lm		o	x
HQL 125 W 6000 lm			o	x
HQL 250 W 13000 lm						x
NAV 70 W 5900 lm				x
NAV 100 W 13000 lm					o	x
NAV 210 W 18000 lm						o
x = Original HQL luminous flux or more o = Luminous flux on average comparable to HQL lamp, during its nominal lifetime
