Consumer
Country
HALOGEN CLASSIC A

HALOGEN CLASSIC A

Choose your product version

46 W 240 V B22D

46 W 240 V B22D

46 W 240 V E27

46 W 240 V E27

57 W 240 V B22d

57 W 240 V B22D

57 W 240 V E27

57 W 240 V E27

77 W 240 V B22D

77 W 240 V E27

77 W 240 V E27

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux
HAL CL A 46 W 240 V B22D B22d 46 W 240 V 2000 h 700 lm 60 W Yes
HAL CL A 46 W 240 V B22D B22d 46 W 240 V 2000 h 700 lm Yes
HAL CL A 46 W 240 V E27 E27 46 W 240 V 2000 h 700 lm
HAL CL A 46 W 240 V E27 E27 46 W 240 V 2000 h 700 lm 60 W Yes
HAL CL A 57 W 240 V B22d B22d 57 W 240 V 2000 h 915 lm
HAL CL A 57 W 240 V B22D B22d 57 W 240 V 2000 h 915 lm 75 W Yes
HAL CL A 57 W 240 V E27 E27 57 W 240 V 2000 h 915 lm
HAL CL A 57 W 240 V E27 E27 57 W 240 V 2000 h 915 lm 75 W Yes
HAL CL A 77 W 240 V B22D B22d 77 W 240 V 2000 h 1320 lm 100 W Yes
HAL SST CL A 77 W 240 V E27 E27 77 W 240 V 2000 h 1320 lm
HAL CL A 77 W 240 V E27 E27 77 W 240 V 2000 h 1320 lm 100 W Yes


HAL CL A 57 W 240 V E27

Product benefits
  • Simple direct replacement for conventional incandescent lamps
  • The same pleasant quality of light as that of an incandescent lamp
  • Instant 100 % light, no warm-up time
  • Contains no mercury
  • UV filter
View all details
Product data sheet
Go to Predecessor product data

PRODUCT DETAILS

Electrical data

Nominal wattage 57 W
Construction wattage 57.00 W
Nominal voltage 240 V

Photometrical data

Luminous flux 915 lm
Luminous efficacy 16 lm/W
Light color (designation) Warm White
Color temperature 2800 K
Color rendering index Ra 100
Light color 1028

Light technical data

Starting time 0 s

Dimensions & Weight

Overall length 97.00 mm
Light center length (LCL) 73,0 mm
Diameter 55.00 mm
Product weight 25.2 g

Additional product data

Base (standard designation) E27
Mercury-free Yes
Design / version Bulb

Capabilities

Burning position Any

Country-specific categorizations

ILCOS HSGSA/F/UB-53-240-E27-73
Order reference 64544 ACLAFR 57

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) E27
Length 94.00 mm
Height 55.00 mm
Width 55.00 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Simple direct replacement for conventional incandescent lamps
  • The same pleasant quality of light as that of an incandescent lamp
  • Instant 100 % light, no warm-up time
  • Contains no mercury
  • UV filter
Areas of application
  • General illumination
  • Mood lighting
  • Entrance lighting
  • Restaurants, hotels and similar prestigious applications
Product features
  • 100 % dimmable
  • Perfect color rendering (Ra: 100)
  • Average life: 2,000 h
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
  • Lamp to be used only in a closed luminaire.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4008321466310 Folding box
1		 97 mm x 55 mm x 55 mm 34.00 g 0.29 dm³
4008321845214 Shipping box
20		 286 mm x 234 mm x 105 mm 794.00 g 7.03 dm³
User Instruction / Safety Instructions
334575_Mounting Instru ction PDF (1.63 MB)
PRODUCT DATASHEET
334109_Technical Data Sheet PDF (174.62 KB)
Product Image, Diagonal, White BG
323685_HALOGEN ENERGY SAVER - HALOLUX CLASSI C A FROSTED TIF (350.14 KB)

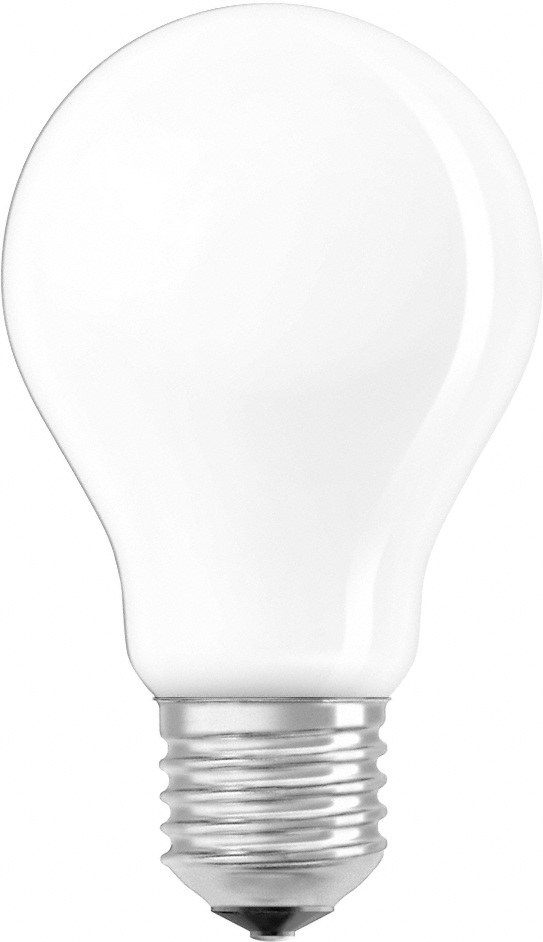

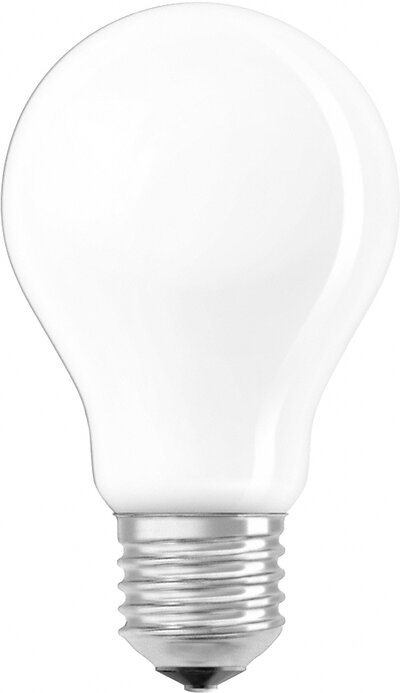

Product Image, Upright, White BG
59392_HALOGEN ENERGY S AVER - HALOLUX CLASSIC A frosted TIF (517.53 KB)
Product line drawing with letters
330208_Halogen Classic A E27 SVG (13.8 KB)
EAN AU model number
4008321466310 OSR64544AESFR53WES
