LED VALUE CLASSIC P

LED VALUE CLASSIC P

Choose your product version

25 3.3 W/2700 K E27

25 3.3 W/6500 K E27

4.9 W/2700 K B22d

40 4.9 W/2700 K E14

40 4.9 W/2700 K E27

40 4.9 W/6500 K E14

40 4.9 W/6500 K E27

5 W/3000 K E27 GEN2

5 W/6500 K E27 GEN2

OVERVIEW

Product description	Base (standard designation)	Nominal wattage	Nominal voltage	Nominal lamp life time	Nominal luminous flux	Beam angle	Dimmable
LED VALUE CLAS P 25 3.3 W/2700 K E27	E27	3.3 W	220…240 V	15000 h	250 lm	25 W	200 °	No
LED VALUE CLAS P 25 3.3 W/6500 K E27	E27	3.3 W	220…240 V	15000 h	250 lm	25 W	200 °	No
LED VALUE CLAS P 4.9 W/2700 K B22d	B22d	4.9 W	220…240 V	15000 h	470 lm	160 °	No
LED VALUE CLAS P 40 4.9 W/2700 K E14	E14	4.9 W	220…240 V	15000 h	470 lm	40 W	200 °	No
LED VALUE CLAS P 40 4.9 W/2700 K E27	E27	4.9 W	220…240 V	15000 h	470 lm	40 W	200 °	No
LED VALUE CLAS P 40 4.9 W/6500 K E14	E14	4.9 W	220…240 V	15000 h	470 lm	40 W	200 °	No
LED VALUE CLAS P 40 4.9 W/6500 K E27	E27	4.9 W	220…240 V	15000 h	470 lm	40 W	200 °	No
LED VALE CLAS P 5 W/3000 K E27 GEN2	E27	5 W	100…240 V	25000 h	470 lm	25 W	200 °	No
LED VALE CLAS P 5 W/6500 K E27 GEN2	E27	5 W	100…240 V	25000 h	470 lm	25 W	200 °	No

LED VALUE CLAS P 4.9 W/2700 K B22d

Product benefits

Energy savings of up to 85 % (compared to traditional incandescent lamps)
Instant 100 % light, no warm-up time
No UV and near-IR radiation in the light beam
Reliable operation thanks to brand quality

View all details

Product data sheet

PRODUCT DETAILS

Technical data

Electrical data

Nominal wattage	4.9 W
Construction wattage	4.90 W
Nominal voltage	220…240 V
Nominal current	39 mA
Type of current	AC
Operating frequency	50/60 Hz
Mains frequency	50/60 Hz
Power factor λ	> 0.50

Photometrical data

Luminous flux	470 lm
Luminous efficacy	95 lm/W
Light color (designation)	Warm White
Color temperature	2700 K
Color rendering index Ra	≥80
Light color	827
Standard deviation of color matching	≤6 sdcm

Light technical data

Beam angle	160 °
Starting time	< 0.5 s

Dimensions & Weight

Overall length	82.00 mm
Diameter	45.00 mm
Product weight	20.00 g

Temperatures & operating conditions

Ambient temperature range

-20…+40 °C

Lifespan

Number of switching cycles

100000

Additional product data

Base (standard designation)	B22d
Mercury content	0.0 mg

Capabilities

Dimmable

No

Country-specific categorizations

Order reference

LVCLP40 4,9W/82

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface)	B22d
Length	82.00 mm
Height	45.00 mm
Width	45.00 mm

Product description

Product benefits

Energy savings of up to 85 % (compared to traditional incandescent lamps)
Instant 100 % light, no warm-up time
No UV and near-IR radiation in the light beam
Reliable operation thanks to brand quality

Areas of application

Domestic applications
General illumination
Outdoor applications only in suitable luminaires

Product features

Color rendering index R_a: ≥ 80
Not dimmable
Mercury-free lamps

GTIN and Packaging information

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4058075625396	Folding box 1	45 mm x 45 mm x 84 mm	28.00 g	0.17 dm³
4058075625402	Shipping box 10	233 mm x 98 mm x 96 mm	341.00 g	2.19 dm³
4099854084676	Shipping box 10	246 mm x 106 mm x 107 mm	345.00 g	2.79 dm³

Product images and graphics

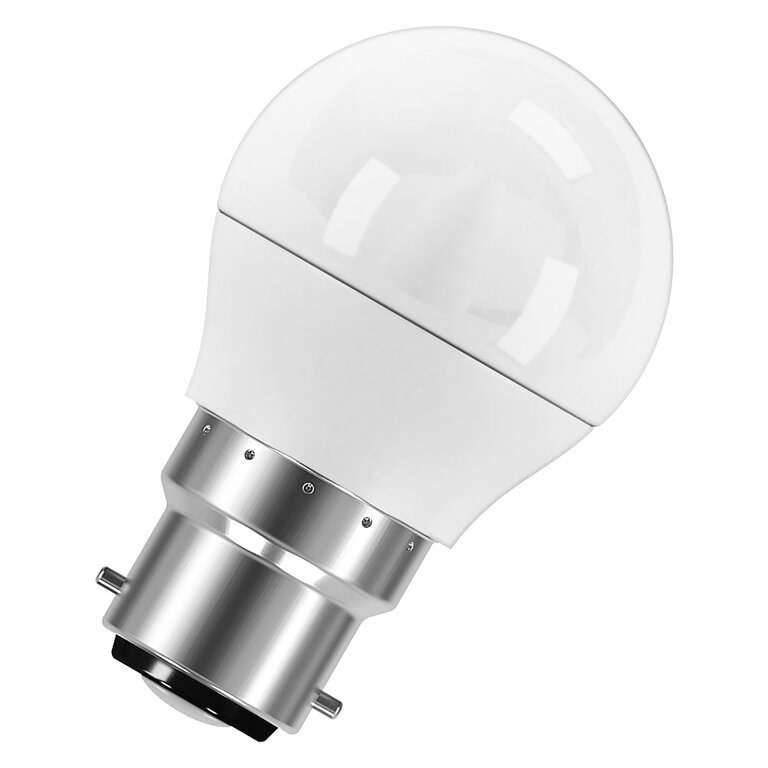

Product Image, Diagonal, White BG
LED STAR CLASSIC P 40 5.5W FR B22d JPG (1.49 MB)

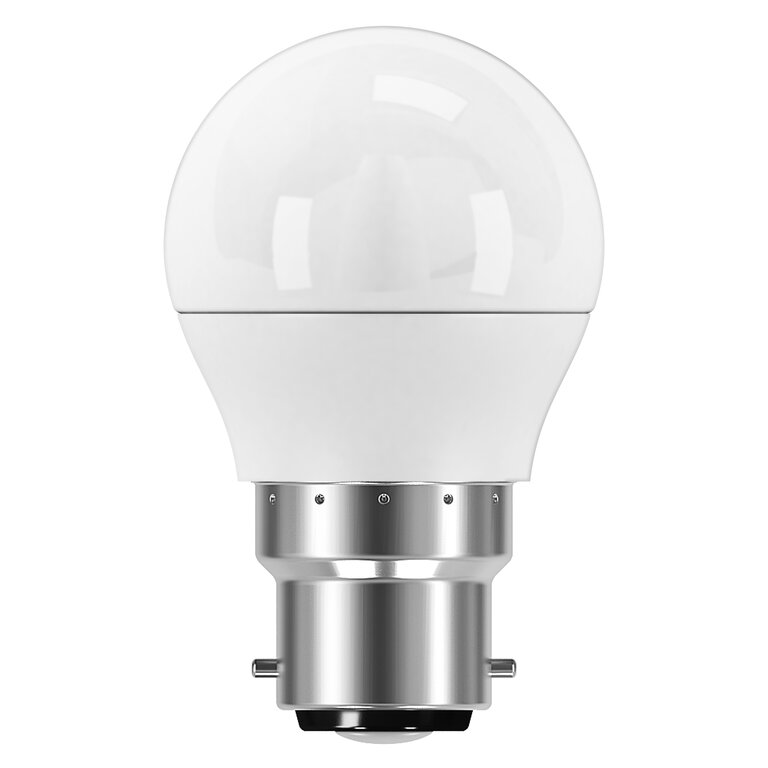

Product Image, Upright, White BG
LS CLP40 FR 5.5W B22d JPG (1.41 MB)

Prod.line drw, front, no dimensions
LS CLP 40 5.5W FR B22d SVG (3.54 KB)

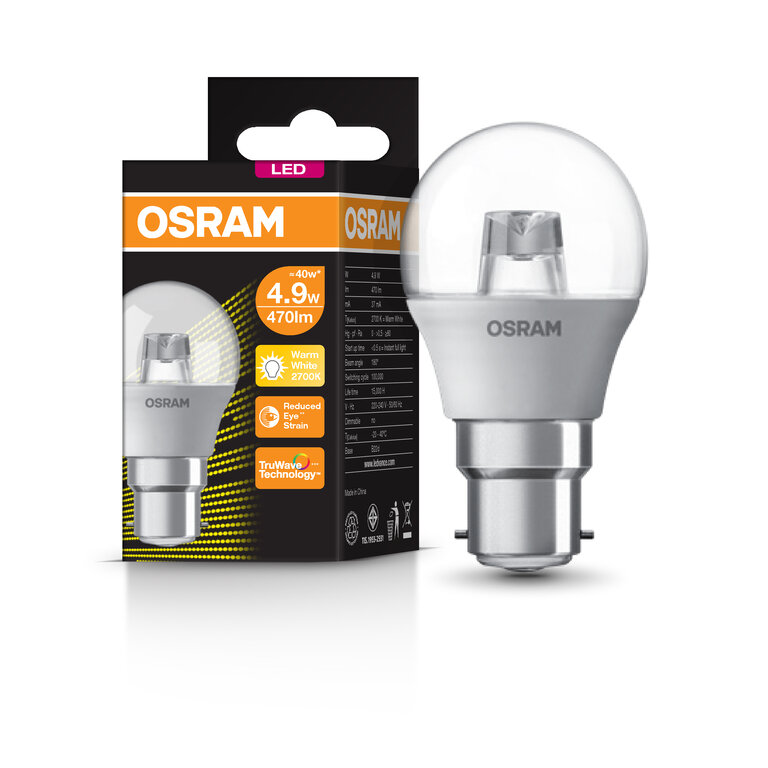

Combo Shot = Product Beauty Shot + Packaging Image
LED VALUE CLP40 4.9W/8 27 CL B22D JPG (1.82 MB)
