Choose your product version
| Product description | Base (standard designation) | Nominal wattage | Nominal voltage | Nominal lamp life time | Nominal luminous flux | Claimed equiv. conventional lamp power | Beam angle | Dimmable |
|---|---|---|---|---|---|---|---|---|

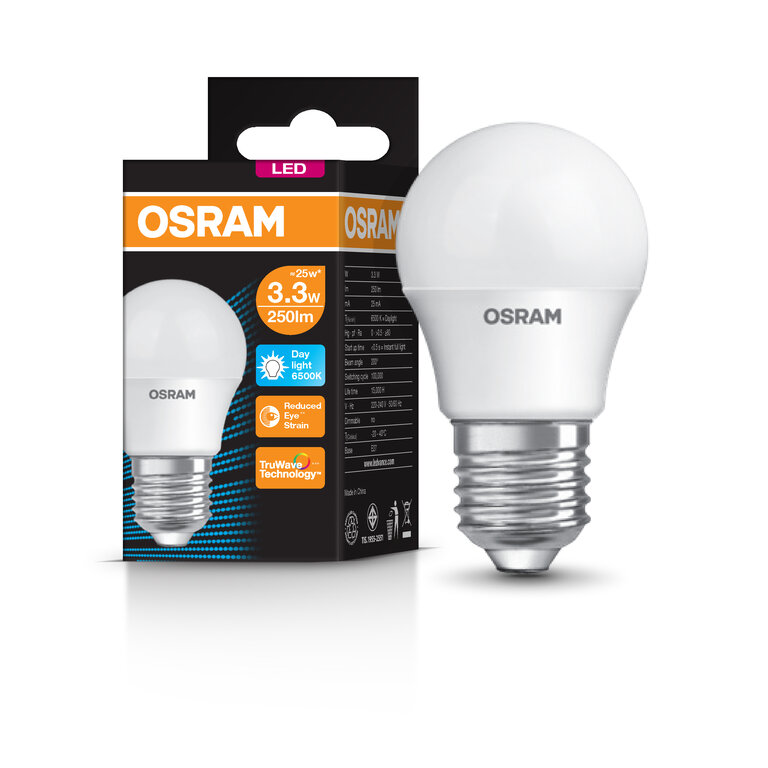

| LED VALUE CLAS P 25 3.3 W/2700 K E27 | E27 | 3.3 W | 220…240 V | 15000 h | 250 lm | 25 W | 200 ° | No |
| LED VALUE CLAS P 25 3.3 W/6500 K E27 | E27 | 3.3 W | 220…240 V | 15000 h | 250 lm | 25 W | 200 ° | No |
| LED VALUE CLAS P 4.9 W/2700 K B22d | B22d | 4.9 W | 220…240 V | 15000 h | 470 lm | 160 ° | No | |
| LED VALUE CLAS P 40 4.9 W/2700 K E14 | E14 | 4.9 W | 220…240 V | 15000 h | 470 lm | 40 W | 200 ° | No |
| LED VALUE CLAS P 40 4.9 W/2700 K E27 | E27 | 4.9 W | 220…240 V | 15000 h | 470 lm | 40 W | 200 ° | No |
| LED VALUE CLAS P 40 4.9 W/6500 K E14 | E14 | 4.9 W | 220…240 V | 15000 h | 470 lm | 40 W | 200 ° | No |
| LED VALUE CLAS P 40 4.9 W/6500 K E27 | E27 | 4.9 W | 220…240 V | 15000 h | 470 lm | 40 W | 200 ° | No |
| LED VALE CLAS P 5 W/3000 K E27 GEN2 | E27 | 5 W | 100…240 V | 25000 h | 470 lm | 25 W | 200 ° | No |
| LED VALE CLAS P 5 W/6500 K E27 GEN2 | E27 | 5 W | 100…240 V | 25000 h | 470 lm | 25 W | 200 ° | No |
| Nominal wattage | 3.3 W |
| Construction wattage | 3.30 W |
| Nominal voltage | 220…240 V |
| Claimed equiv. conventional lamp power | 25 W |
| Nominal current | 28 mA |
| Type of current | AC |
| Operating frequency | 50/60 Hz |
| Mains frequency | 50/60 Hz |
| Luminous flux | 250 lm |
| Nominal useful luminous flux 90° | 250 lm |
| Luminous efficacy | 75 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Daylight |
| Color temperature | 6500 K |
| Color rendering index Ra | 80 |
| Light color | 865 |
| Standard deviation of color matching | ≤6 sdcm |
| Beam angle | 200 ° |
| Overall length | 82.00 mm |
| Diameter | 45.00 mm |
| Maximum diameter | 45 mm |
| Product weight | 10.00 g |
| Ambient temperature range | -20…+40 °C |
| Number of switching cycles | 100000 |
| Lumen maintenance at end of service lifetime | 0.70 |
| Base (standard designation) | E27 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Product remark | All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value |
| Dimmable | No |
| Energy efficiency class | A+ 1) |
| Energy consumption | 3.30 kWh/1000h |
1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)
| Order reference | LVCLP253,3W/865 |
| Light source cap-type (or other electric interface) | E27 |
| Length | 82.00 mm |
| Height | 45.00 mm |
| Width | 45.00 mm |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075039360 | Folding box 1 |
45 mm x 45 mm x 75 mm | 29.00 g | 0.15 dm³ |
| 4058075351073 | Shipping box 10 |
233 mm x 98 mm x 96 mm | 321.00 g | 2.19 dm³ |
