LED VALUE CLASSIC P

LED VALUE CLASSIC P

Choose your product version

2.5 W/2700 K E27

2.5 W/6500 K E27

25 3.3 W/2700 K E27

25 3.3 W/6500 K E27

4.9 W/2700 K B22d

4.7 W/2700 K E14

4.7 W/2700 K E14

40 4.9 W/2700 K E14

40 4.9 W/2700 K E27

4.7 W/2700 K E27

4.7 W/2700 K E27

4.7 W/6500 K E14

40 4.9 W/6500 K E14

4.7 W/6500 K E27

40 4.9 W/6500 K E27

5 W/3000 K E27 GEN2

5 W/6500 K E27 GEN2

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED VALUE CLAS P 2.5 W/2700 K E27 E27 2.5 W 220…240 V 15000 h 250 lm 25 W 180 ° No
LED VALUE CLAS P 2.5 W/6500 K E27 E27 2.5 W 220…240 V 15000 h 250 lm 25 W 180 ° No
LED VALUE CLAS P 25 3.3 W/2700 K E27 E27 3.3 W 220…240 V 15000 h 250 lm 25 W 200 ° No
LED VALUE CLAS P 25 3.3 W/6500 K E27 E27 3.3 W 220…240 V 15000 h 250 lm 25 W 200 ° No
LED VALUE CLAS P 4.9 W/2700 K B22d B22d 4.9 W 220…240 V 15000 h 470 lm 160 ° No
LED VALUE CLAS P 4.7 W/2700 K E14 E14 4.7 W 220…240 V 15000 h 470 lm 40 W 150 ° No
LED VALUE CLAS P 4.7 W/2700 K E14 E14 4.7 W 220…240 V 15000 h 470 lm 40 W 180 ° No
LED VALUE CLAS P 40 4.9 W/2700 K E14 E14 4.9 W 220…240 V 15000 h 470 lm 40 W 200 ° No
LED VALUE CLAS P 40 4.9 W/2700 K E27 E27 4.9 W 220…240 V 15000 h 470 lm 40 W 200 ° No
LED VALUE CLAS P 4.7 W/2700 K E27 E27 4.7 W 220…240 V 15000 h 470 lm 40 W 180 ° No
LED VALUE CLAS P 4.7 W/2700 K E27 E27 4.7 W 220…240 V 15000 h 470 lm 40 W 150 ° No
LED VALUE CLAS P 4.7 W/6500 K E14 E14 4.7 W 220…240 V 15000 h 470 lm 40 W 180 ° No
LED VALUE CLAS P 40 4.9 W/6500 K E14 E14 4.9 W 220…240 V 15000 h 470 lm 40 W 200 ° No
LED VALUE CLAS P 4.7 W/6500 K E27 E27 4.7 W 220…240 V 15000 h 470 lm 40 W 180 ° No
LED VALUE CLAS P 40 4.9 W/6500 K E27 E27 4.9 W 220…240 V 15000 h 470 lm 40 W 200 ° No
LED VALE CLAS P 5 W/3000 K E27 GEN2 E27 5 W 100…240 V 25000 h 470 lm 25 W 200 ° No
LED VALE CLAS P 5 W/6500 K E27 GEN2 E27 5 W 100…240 V 25000 h 470 lm 25 W 200 ° No


LED VALUE CLAS P 4.7 W/2700 K E27

Product benefits
  • Energy savings of up to 85 % (compared to traditional incandescent lamps)
  • Instant 100 % light, no warm-up time
  • No UV and near-IR radiation in the light beam
  • Reliable operation thanks to brand quality
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 4.7 W
Construction wattage 4.70 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 40 W
Nominal current 43 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ > 0.50

Photometrical data

Luminous flux 470 lm
Luminous efficacy 100 lm/W
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 80
Light color 827
Standard deviation of color matching ≤6 sdcm

Light technical data

Beam angle 150 °
Starting time ≤ 0.5 s

Dimensions & Weight

Overall length 82.00 mm
Diameter 45.00 mm
Maximum diameter 45 mm
Product weight 20.00 g

Temperatures & operating conditions

Ambient temperature range -20…+45 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear

Capabilities

Dimmable No

Certificates & Standards

Type of protection IP20
Standards CB, EMC, SAA, ROHS
Photobiological safety group acc. to EN62778 RG0

Country-specific categorizations

Order reference LVCLP40 4,7W/82

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Light source cap-type (or other electric interface) E27
Length 82.00 mm
Height 45.00 mm
Width 45.00 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Energy savings of up to 85 % (compared to traditional incandescent lamps)
  • Instant 100 % light, no warm-up time
  • No UV and near-IR radiation in the light beam
  • Reliable operation thanks to brand quality
Areas of application
  • Domestic applications
  • General illumination
  • Outdoor applications only in suitable luminaires
Product features
  • Color rendering index Ra: ≥ 80
  • Not dimmable
  • Mercury-free lamps
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854310287 Folding box
1		 45 mm x 45 mm x 84 mm 29.00 g 0.17 dm³
4099854310294 Shipping box
10		 233 mm x 98 mm x 96 mm 351.00 g 2.19 dm³

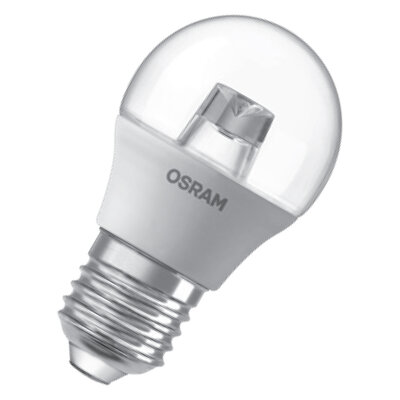

Product Image, Diagonal with OSRAM LOGO, White BG
LVCLP E27 JPG (1.24 MB)

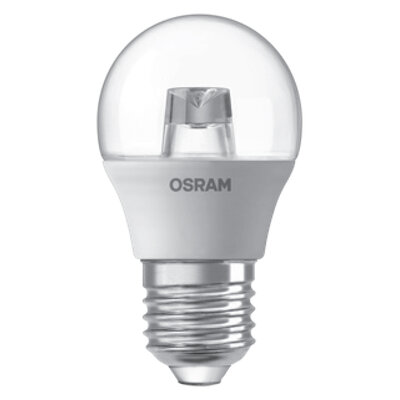

Product Image, Upright with Osram LOGO, White BG
LVCLP E27 JPG (1.04 MB)
Product line drawing with numbers
LVCLP E27 SVG (4.63 KB)
