LED VALUE CLASSIC A FILAMENT

LED VALUE CLASSIC A FILAMENT

Choose your product version

4 W/2700 K B22d CL

4 W/2700 K E27 CL

4 W/2700 K E27

4 W/4000 K E27

4 W/4000 K E27 CL

6.5 W/2700 K B22d CL

6.5 W/2700 K B22d FR

6.5 W/2700 K E27

6.5 W/2700 K E27 CL

6.5 W/2700 K E27

6.5 W/2700 K E27

6.5 W/4000 K E27

6.5 W/4000 K E27

7 W/2700 K E27 FR

7.5 W/2700 K B22d CL

7.5 W/2700 K E27 CL

7.5 W/4000 K B22d CL

7.5 W/4000 K E27 CL

OVERVIEW

Product description	Base (standard designation)	Nominal wattage	Nominal voltage	Nominal lamp life time	Nominal luminous flux	Claimed equiv. conventional lamp power	Beam angle	Dimmable
LED VALUE CLAS A FIL 4 W/2700 K B22d CL	B22d	4 W	220…240 V	15000 h	470 lm	40 W	300 °	No
LED VALUE CLAS A FIL 4 W/2700 K E27 CL	E27	4 W	220…240 V	15000 h	470 lm	40 W	300 °	No
LED VALUE CLAS A FIL 4 W/2700 K E27	E27	4 W	220…240 V	15000 h	470 lm	40 W	300 °	No
LED VALUE CLAS A FIL 4 W/4000 K E27	E27	4 W	220…240 V	15000 h	470 lm	40 W	300 °	No
LED VALUE CLAS A FIL 4 W/4000 K E27 CL	E27	4 W	220…240 V	15000 h	470 lm	40 W	300 °	No
LED VALUE CLAS A FIL 6.5 W/2700 K B22d CL	B22d	6.5 W	220…240 V	15000 h	806 lm	60 W	300 °	No
LED VALUE CLAS A FIL 6.5 W/2700 K B22d FR	B22d	6.5 W	220…240 V	15000 h	806 lm	60 W	300 °	No
LED VALUE CLAS A FIL 6.5 W/2700 K E27	E27	6.5 W	220…240 V	20000 h	806 lm	60 W	300 °	No
LED VALUE CLAS A FIL 6.5 W/2700 K E27 CL	E27	6.5 W	220…240 V	15000 h	806 lm	60 W	300 °	No
LED VALUE CLAS A FIL 6.5 W/2700 K E27	E27	6.5 W	220…240 V	20000 h	806 lm	60 W	300 °	No
LED VALUE CLAS A FIL 6.5 W/2700 K E27	E27	6.5 W	220…240 V	20000 h	806 lm	60 W	300 °	No
LED VALUE CLAS A FIL 6.5 W/4000 K E27	E27	6.5 W	220…240 V	15000 h	806 lm	60 W	300 °	No
LED VALUE CLAS A FIL 6.5 W/4000 K E27	E27	6.5 W	220…240 V	15000 h	806 lm	60 W	300 °	No
LED VALUE CLAS A FIL 7 W/2700 K E27 FR	E27	7 W	220…240 V	15000 h	806 lm	60 W	300 °	No
LED VALUE CLAS A FIL 7.5 W/2700 K B22d CL	B22d	7.5 W	220…240 V	10000 h	1055 lm	75 W	300 °	No
LED VALUE CLAS A FIL 7.5 W/2700 K E27 CL	E27	7.5 W	220…240 V	15000 h	1055 lm	75 W	300 °	No
LED VALUE CLAS A FIL 7.5 W/4000 K B22d CL	B22d	7.5 W	220…240 V	10000 h	1055 lm	75 W	300 °	No
LED VALUE CLAS A FIL 7.5 W/4000 K E27 CL	E27	7.5 W	220…240 V	15000 h	1055 lm	75 W	300 °	No

LED VALUE CLAS A FIL 6.5 W/4000 K E27

Product benefits

Lamps with innovative LED "filament" technology
Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
Very low energy consumption
No UV and near-IR radiation in the light beam
Instant 100 % light, no warm-up time
Can be easily fitted instead of ordinary light bulbs
Lower thermal output (compared with the standard reference product)
Correct operation even at low temperatures

View all details

Product data sheet

PRODUCT DETAILS

Technical data

Electrical data

Nominal wattage	6.5 W
Construction wattage	6.50 W
Nominal voltage	220…240 V
Claimed equiv. conventional lamp power	60 W
Nominal current	38 mA
Type of current	AC
Operating frequency	50/60 Hz
Mains frequency	50/60 Hz
Power factor λ	> 0.50

Photometrical data

Luminous flux	806 lm
Luminous efficacy	124 lm/W
Lumen main.fact.at end of nom.life time	0.93
Light color (designation)	Cool White
Color temperature	4000 K
Color rendering index Ra	80
Light color	840
Standard deviation of color matching	≤6 sdcm
Rated LLMF at 6,000 h	0.80

Light technical data

Beam angle	300 °
Warm-up time (60 %)	‹ 0.50 s
Starting time	< 0.5 s

Dimensions & Weight

Overall length	105.00 mm
Diameter	60.00 mm
Maximum diameter	60 mm
Product weight	31.00 g

Temperatures & operating conditions

Ambient temperature range

-20…+40 °C

Lifespan

Lifespan L70/B50 at 25 °C	15000 h
Number of switching cycles	100000
Lumen maintenance at end of service lifetime	0.93
Rated lamp survival factor at 6,000 h	≥ 0.90

Additional product data

Base (standard designation)	E27
Mercury content	0.0 mg
Mercury-free	Yes
Design / version	Clear

Capabilities

Dimmable

No

Certificates & Standards

Energy efficiency class	E
Energy consumption	7.00 kWh/1000h
Type of protection	IP20
Standards	CB
Photobiological safety group acc. to EN62778	RG1

Country-specific categorizations

Order reference

LV CLA 6,5W/840

Energy labelling regulation data acc EU 2019/2015

Lighting technology used	LED
Light source cap-type (or other electric interface)	E27
Correlated colour temperature type	SINGLE_VALUE
Length	105.00 mm
Height	60.00 mm
Width	60.00 mm
EPREL ID	1361317
Model number	AC45208

Product description

Product benefits

Lamps with innovative LED "filament" technology
Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
Very low energy consumption
No UV and near-IR radiation in the light beam
Instant 100 % light, no warm-up time
Can be easily fitted instead of ordinary light bulbs
Lower thermal output (compared with the standard reference product)
Correct operation even at low temperatures

Areas of application

Perfect for decorative installations
Domestic applications
General illumination
Outdoor use in outdoor luminaires only (minimum IP65)

Product features

Professional LED lamps for line voltage
Not dimmable
Lifetime: up to 15,000 h
Beam angle: up to 300°
Lamp made of glass
Good quality of light; color rendering index R_a: ≥ 80; constant chromaticity

GTIN and Packaging information

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4099854311000	Folding box 1	60 mm x 60 mm x 111 mm	45.00 g	0.40 dm³
4099854311017	Shipping box 10	315 mm x 131 mm x 126 mm	544.00 g	5.20 dm³

Product images and graphics

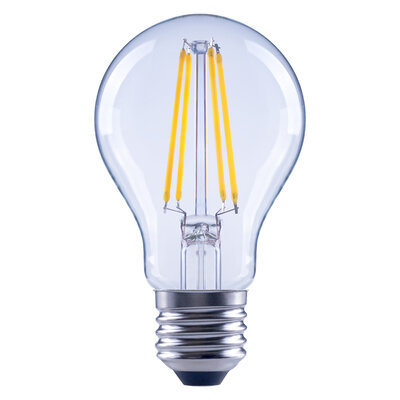

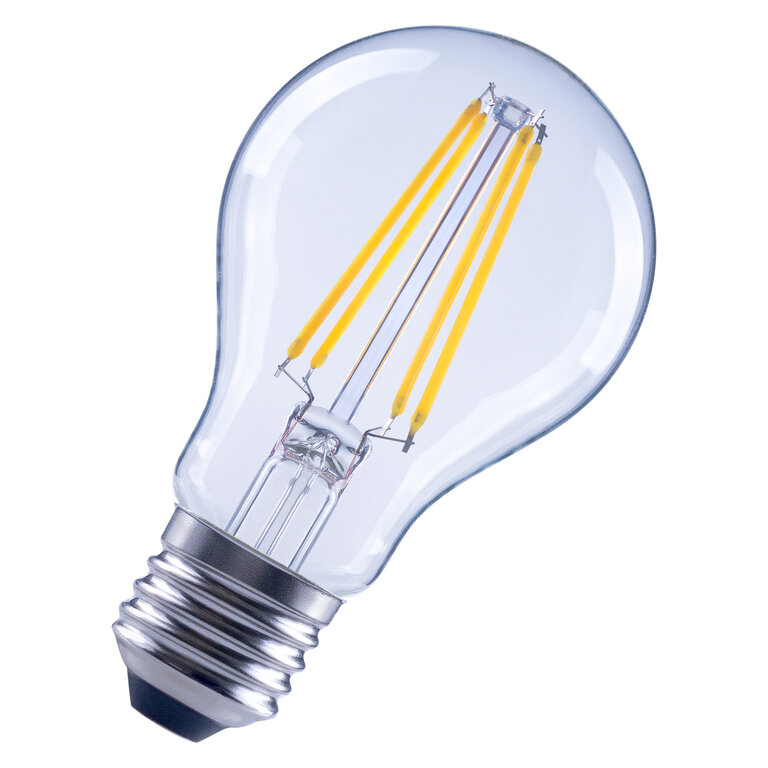

Product Image, Diagonal, White BG
LV CLA E27 JPG (1.64 MB)

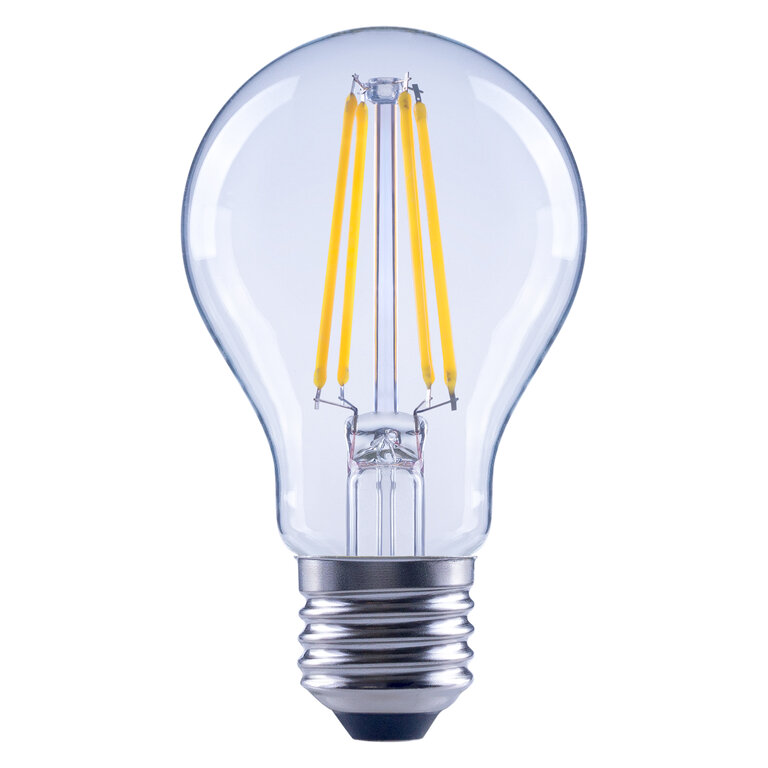

Product Image, Upright, White BG
LV CLA E27 JPG (1.26 MB)

Product line drawing with letters
1906_LED_CLASSIC A 60_ FIL GOLD_E27 SVG (12.08 KB)

Prod.line drw, front, no dimensions
1906_LED_CLASSIC A 60_ FIL GOLD_E27 SVG (9.16 KB)

Energy label
EL-4099854311000-AC452 08 PDF (21.44 KB)

Logos and Pictos
E left SVG (1.9 KB)

Logos and Pictos
E left BW SVG (1.07 KB)

Logos and Pictos
E right SVG (1.86 KB)

Logos and Pictos
E right BW SVG (1.07 KB)
