Professional
LED VALUE CLASSIC A FILAMENT

LED VALUE CLASSIC A FILAMENT

Choose your product version

4 W/2700 K B22d CL

4 W/2700 K E27 CL

4 W/2700 K E27

4 W/4000 K E27

4 W/4000 K E27 CL

6.5 W/2700 K B22d CL

6.5 W/2700 K B22d FR

6.5 W/2700 K E27

6.5 W/2700 K E27 CL

6.5 W/2700 K E27

6.5 W/2700 K E27

6.5 W/4000 K E27

6.5 W/4000 K E27

7 W/2700 K E27 FR

7.5 W/2700 K B22d CL

7.5 W/2700 K E27 CL

7.5 W/4000 K B22d CL

7.5 W/4000 K E27 CL

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED VALUE CLAS A FIL 4 W/2700 K B22d CL B22d 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED VALUE CLAS A FIL 4 W/2700 K E27 CL E27 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED VALUE CLAS A FIL 4 W/2700 K E27 E27 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED VALUE CLAS A FIL 4 W/4000 K E27 E27 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED VALUE CLAS A FIL 4 W/4000 K E27 CL E27 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED VALUE CLAS A FIL 6.5 W/2700 K B22d CL B22d 6.5 W 220…240 V 15000 h 806 lm 60 W 300 ° No
LED VALUE CLAS A FIL 6.5 W/2700 K B22d FR B22d 6.5 W 220…240 V 15000 h 806 lm 60 W 300 ° No
LED VALUE CLAS A FIL 6.5 W/2700 K E27 E27 6.5 W 220…240 V 20000 h 806 lm 60 W 300 ° No
LED VALUE CLAS A FIL 6.5 W/2700 K E27 CL E27 6.5 W 220…240 V 15000 h 806 lm 60 W 300 ° No
LED VALUE CLAS A FIL 6.5 W/2700 K E27 E27 6.5 W 220…240 V 20000 h 806 lm 60 W 300 ° No
LED VALUE CLAS A FIL 6.5 W/2700 K E27 E27 6.5 W 220…240 V 20000 h 806 lm 60 W 300 ° No
LED VALUE CLAS A FIL 6.5 W/4000 K E27 E27 6.5 W 220…240 V 15000 h 806 lm 60 W 300 ° No
LED VALUE CLAS A FIL 6.5 W/4000 K E27 E27 6.5 W 220…240 V 15000 h 806 lm 60 W 300 ° No
LED VALUE CLAS A FIL 7 W/2700 K E27 FR E27 7 W 220…240 V 15000 h 806 lm 60 W 300 ° No
LED VALUE CLAS A FIL 7.5 W/2700 K B22d CL B22d 7.5 W 220…240 V 10000 h 1055 lm 75 W 300 ° No
LED VALUE CLAS A FIL 7.5 W/2700 K E27 CL E27 7.5 W 220…240 V 15000 h 1055 lm 75 W 300 ° No
LED VALUE CLAS A FIL 7.5 W/4000 K B22d CL B22d 7.5 W 220…240 V 10000 h 1055 lm 75 W 300 ° No
LED VALUE CLAS A FIL 7.5 W/4000 K E27 CL E27 7.5 W 220…240 V 15000 h 1055 lm 75 W 300 ° No


LED VALUE CLAS A FIL 6.5 W/2700 K B22d FR

Product benefits
  • Lamps with innovative LED "filament" technology
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • Very low energy consumption
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Lower thermal output (compared with the standard reference product)
  • Correct operation even at low temperatures
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 6.5 W
Construction wattage 6.50 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 60 W
Nominal current 58 mA
Type of current AC
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Power factor λ > 0.50

Photometrical data

Luminous flux 806 lm
Luminous efficacy 124 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80

Light technical data

Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 104.00 mm
Diameter 60.00 mm
Maximum diameter 60 mm
Product weight 31.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C

Lifespan

Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) B22d
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class E 1)
Energy consumption 7.00 kWh/1000h
Type of protection IP20
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)

Country-specific categorizations

Order reference LV CLA 6,5W/827

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) B22d
Correlated colour temperature type SINGLE_VALUE
Length 104.00 mm
Height 60.00 mm
Width 60.00 mm
EPREL ID 1402911,1361316
Model number AC03078,AC45209
Product benefits
  • Lamps with innovative LED "filament" technology
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • Very low energy consumption
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Lower thermal output (compared with the standard reference product)
  • Correct operation even at low temperatures
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in outdoor luminaires only (minimum IP65)
Product features
  • Professional LED lamps for line voltage
  • Not dimmable
  • Lifetime: up to 15,000 h
  • Beam angle: up to 300°
  • Lamp made of glass
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075267329 Folding box
1		 64 mm x 64 mm x 131 mm 46.00 g 0.54 dm³
4058075751293 Shipping box
10		 332 mm x 138 mm x 147 mm 647.00 g 6.73 dm³
4099854260667 Shipping box
10		 332 mm x 138 mm x 147 mm 637.00 g 6.73 dm³
4058075267336 Shipping box
10		 332 mm x 138 mm x 147 mm 614.00 g 6.73 dm³
4058075509108 Shipping box
10		 332 mm x 138 mm x 147 mm 617.00 g 6.73 dm³

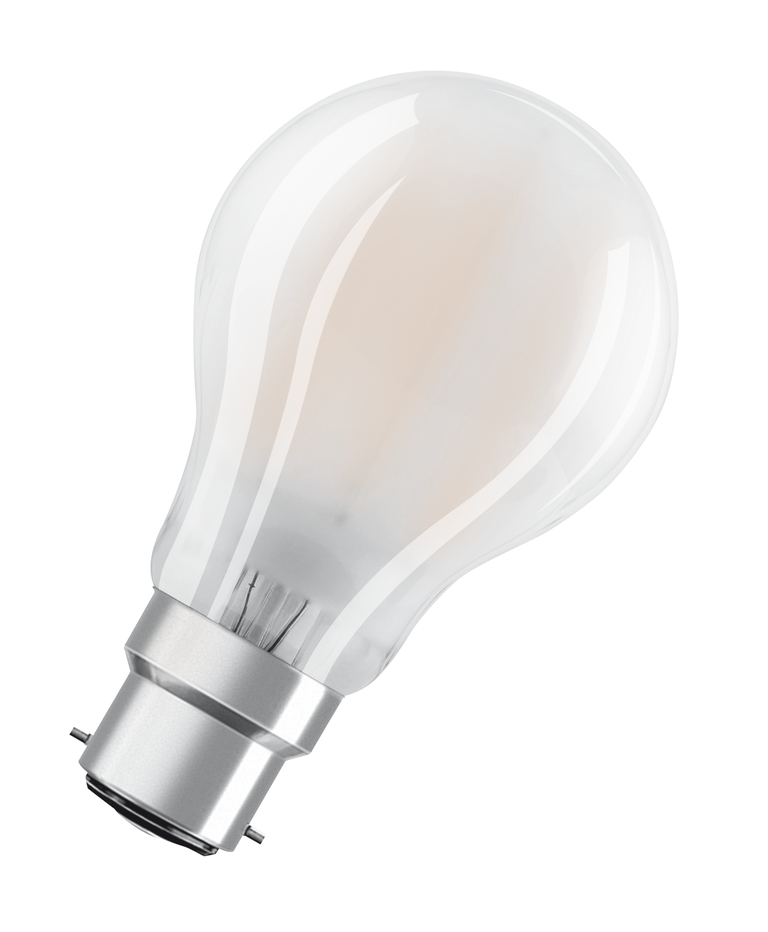

Product Image, Diagonal, White BG
Classic A GLFR B22d TIF (15.95 MB)

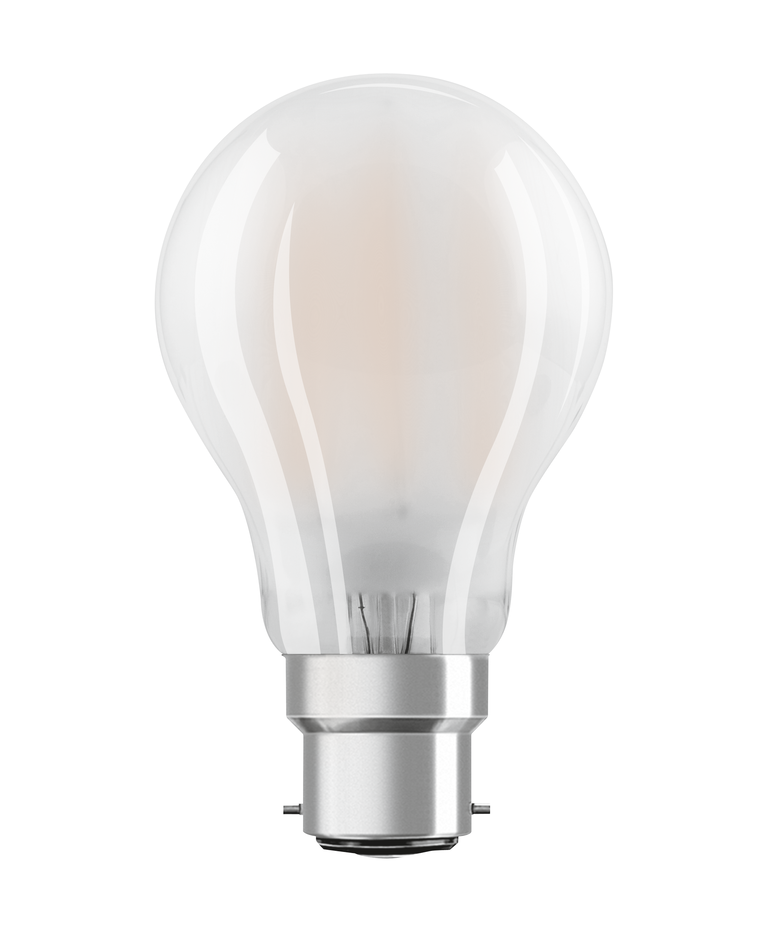

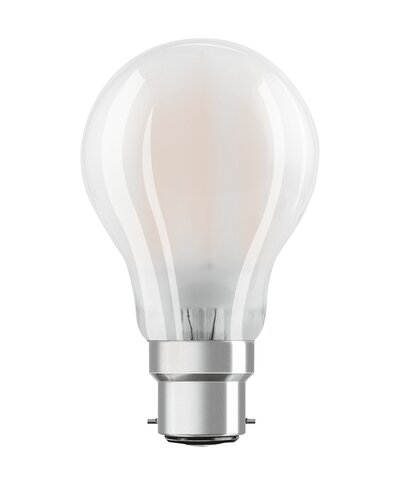

Product Image, Upright, White BG
Classic A GLFR B22d TIF (15.95 MB)
Prod.line drw, front, no dimensions
328069_CLASSIC A B22d FROSTED SVG (4.61 KB)
Energy label
EL-4058075267329-AC030 78 PDF (21.65 KB)
Energy label
EL-4058075267329-AC452 09 PDF (21.36 KB)
Logos and Pictos
E left SVG (1.9 KB)
Logos and Pictos
E left BW SVG (1.07 KB)
Logos and Pictos
E right SVG (1.86 KB)
Logos and Pictos
E right BW SVG (1.07 KB)
IES file (IES)
LED CLASSIC A 7 W non- dim IES (20.91 KB)
LDT file (Eulumdat)
LV CLA 7W 827 230VGLFR B22D LDT (11.98 KB)
LDC typ polar
LV CLA 7W 827 230VGLFR B22D SVG (471.51 KB)
