DAMP PROOF COMPACT IP65

DAMP PROOF COMPACT IP65

Choose your product version

1200 23 W 4000K IP65 GR

1500 31 W 4000K IP65 GY

1200 44 W 4000K IP65 GY

1200 44 W 6500K IP65 GY

1500 55 W 4000K IP65 GY

1500 55 W 6500K IP65 GY

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
DP COMPACT 1200 23 W 4000K IP65 GR 23.00 W 100000 120 ° 2800 lm No
DP COMPACT 1500 31 W 4000K IP65 GY 31.00 W 100000 120 ° 3800 lm No
DP COMPACT 1200 44 W 4000K IP65 GY 44.00 W 100000 120 ° 5400 lm No
DP COMPACT 1200 44 W 6500K IP65 GY 44.00 W 100000 120 ° 5400 lm No
DP COMPACT 1500 55 W 4000K IP65 GY 55.00 W 100000 120 ° 6700 lm No
DP COMPACT 1500 55 W 6500K IP65 GY 55.00 W 100000 120 ° 6700 lm No


DP COMPACT 1200 23 W 4000K IP65 GR

Product benefits
  • Evenly distributed light
  • Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
  • Easy installation as mounting brackets can be positioned freely on the luminaire
  • Easy access to electrical terminal thanks to end caps with twist and lock mechanism
  • Tool-free electrical connection due to push button connector
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 23.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 110 mA
Inrush current 13.2 A
Inrush current time Th50 111 µs
Max. number of luminaires per miniature circuit breaker B16 38
Max. number of luminaires per miniature circuit breaker C10 35
Max. number of luminaires per miniature circuit breaker C16 56
Power factor λ > 0.90
Total harmonic distortion 20 %
Protection class II
Operating mode Integrated LED driver

Photometrical data

Luminous flux 2800 lm
Luminous efficacy 120 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra > 80
Standard deviation of color matching ≤5 sdcm
Photobiological safety group acc. to EN62778 RG0
Beam angle 120 °

Dimensions & Weight

Length 1290.00 mm
Height 68.00 mm
Width 86.00 mm
Product weight 1120.00 g

Materials & Colors

Product color Gray
Housing color Gray
Body material Polycarbonate (PC)
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -35…+50 °C
Temperature range at storage -40…+70 °C
Type of connection Screwless terminal, 3-Pole
Type of protection IP65
Protection class IK (shock resistance) IK08
Dimmable No
Mounting type Suspended/Surface
Mounting location Ceiling, Wall
Application environment Indoor
LED module replaceable Not replaceable

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 35000 h 1)
Lifespan L90/B10 at 25 °C 20000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 175 mA

Certificates & Standards

Standards CE, CB, TÜV SÜD, EAC, RoHS
Luminaire with limited surface temperature, "D sign" Yes
Ball shot safe No
Product benefits
  • Evenly distributed light
  • Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
  • Easy installation as mounting brackets can be positioned freely on the luminaire
  • Easy access to electrical terminal thanks to end caps with twist and lock mechanism
  • Tool-free electrical connection due to push button connector
  • 5 years guarantee
Areas of application
  • Industrial and storage facilities
  • Car parks and underpasses
  • Garages
  • Workshops, assembly lines
Product features
  • High luminous efficacy: up to 120 lm/W
  • Type of protection: IP65
  • Beam angle: 120°
  • Through-wired (L, N)
Equipment / Accessories
  • Stainless steel clamps with safety screws included
  • Mounting accessories included (suspension kit, theft protection kit)
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075062085 Folding box
1		 72 mm x 1,319 mm x 90 mm 1270.00 g 8.55 dm³
4058075062092 Shipping box
6		 1,340 mm x 200 mm x 240 mm 8140.00 g 64.32 dm³

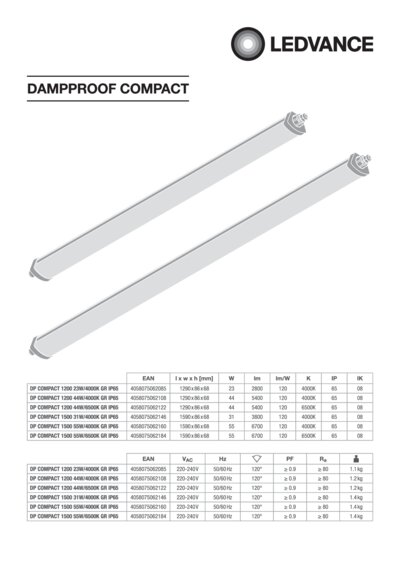

User Instruction / Safety Instructions

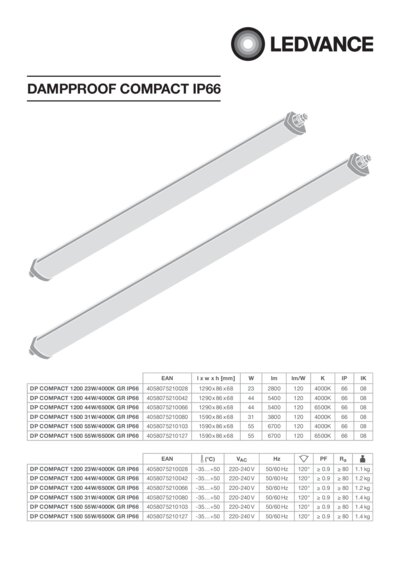

User Instruction DampP roof Compact IP66 PDF (4.13 MB)
User Instruction / Safety Instructions
User Instruction DampP roof Compact PDF (3.14 MB)

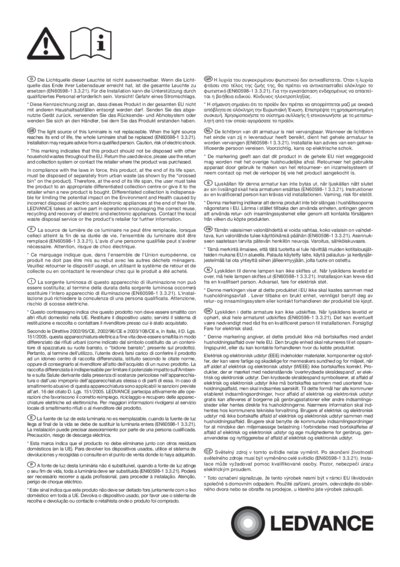

On-Pack-Info
Legal Insert DAMP PROO F LED COMPACT PDF (1.55 MB)

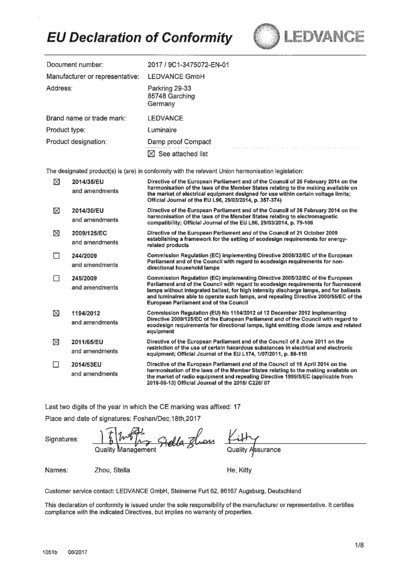

Declarations of conformity
EC Declaration of Damp Proof Compact PDF (683.39 KB)

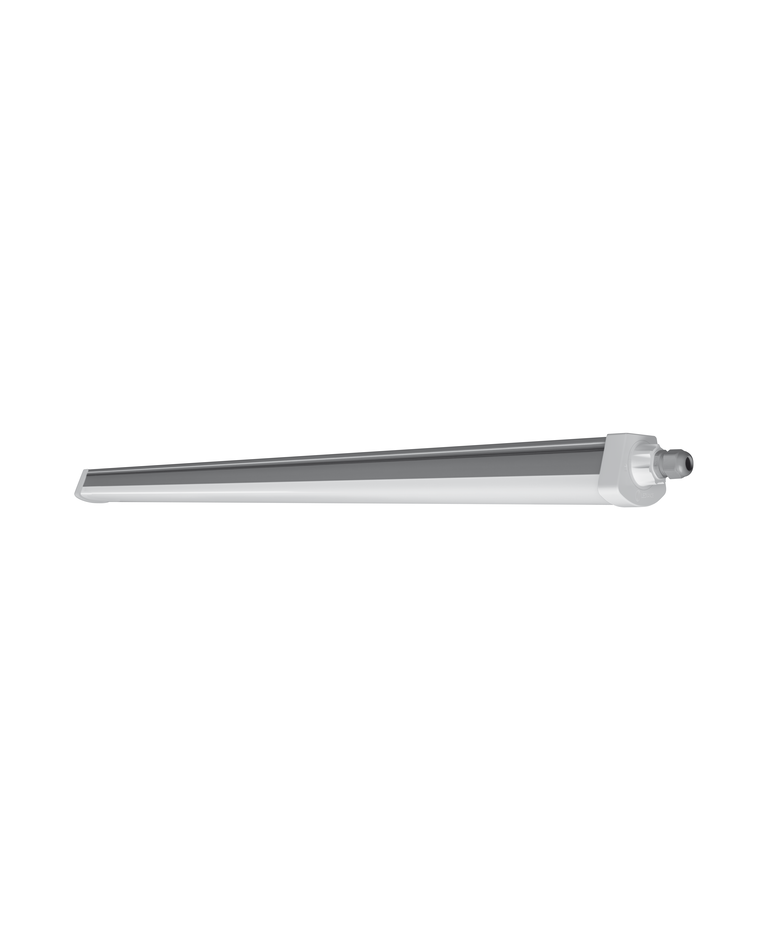

Product Image, Diagonal, White BG
Dampproof Compact 1200 IP65 TIF (3.2 MB)

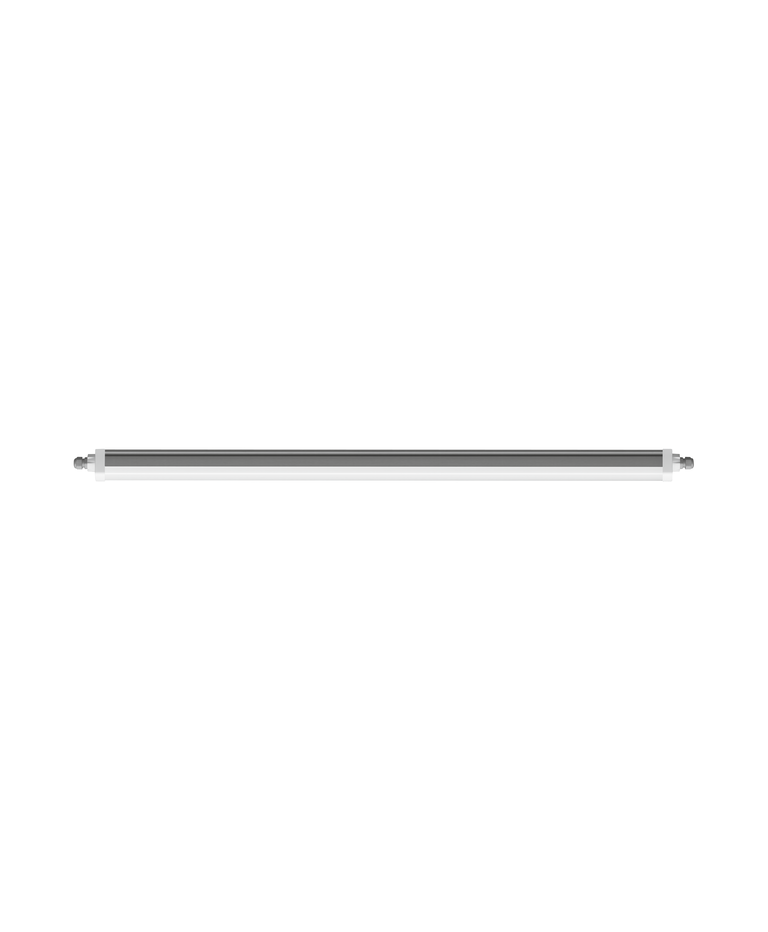

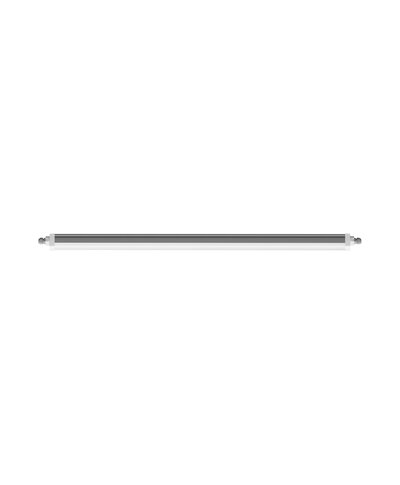

Product Image, Horizontal, White BG
Dampproof Compact 1200 IP65 TIF (1.78 MB)

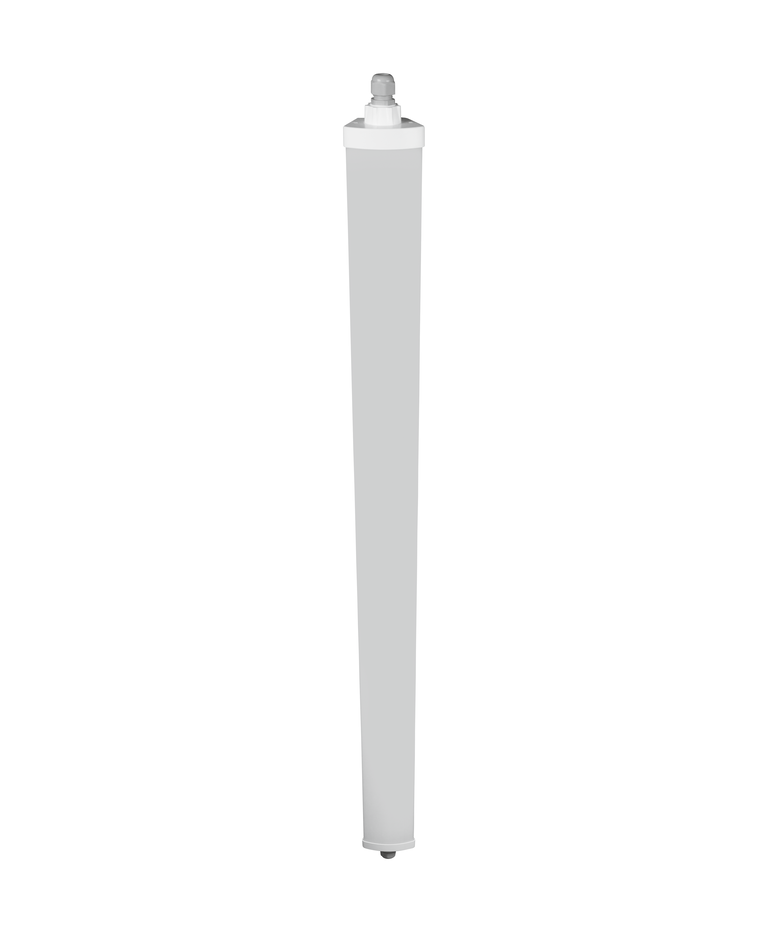

Product Image, Upright, White BG
Dampproof Compact 1200 IP65 TIF (2.66 MB)
Product line drawing with letters
Dampproof Compact 1200 IP65 SVG (17.03 KB)
Product line drawing with numbers
Dampproof Compact 1200 IP65 SVG (21.71 KB)
Packaging image, spacial
DampProof LED Compact 1200 IP65 23W 840 MiCh Side TIF (41.28 MB)
Catalog info 1
UI DampProof Compact I P66 SVG (119.3 KB)
Catalog info 2
UI DampProof Compact I P66 SVG (93.89 KB)
Catalog info 3
UI DampProof Compact I P66 SVG (90.67 KB)
Catalog info 4
UI DampProof Compact I P66 SVG (84.72 KB)
Catalog info 5
UI DampProof Compact I P66 SVG (48.63 KB)
IES file (IES)
DP Compact 1200 23W 40 00K IP65 IK08 GR IES (7.31 KB)
LDT file (Eulumdat)
DP Compact 1200 23W 40 00K IP65 IK08 GR LDT (7.74 KB)
ULD file (DIALux)
DAMPPROOFCOMPACT120023 W4000KIP65GY ULD (458.75 KB)
UGR file (UGR table)
4058075062085 DP Compa ct 1200 23W 4000K IP65 IK08 GR PNG (62.23 KB)
LDC typ cone
4058075062085 DP Compa ct 1200 23W 4000K IP65 IK08 GR SVG (83.07 KB)
LDC typ polar
4058075062085 DP Compa ct 1200 23W 4000K IP65 IK08 GR SVG (619.35 KB)
Application Pictures
Industry Dampproof Com pact TIF (35.58 MB)

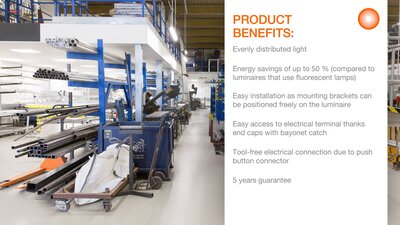

Video
LEDVANCE Damp Proof Co mpact EN MP4 (70.79 MB)

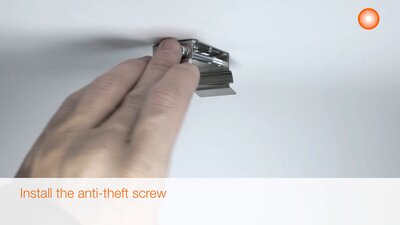

Video
LEDVANCE LUM Installat ion Video EN Damp Proo f Compact MP4 (165.36 MB)
EAN SEG number STK number EFO number
4058075062085 7214018 4315506 3241092
