OVERVIEW

Product description	Nominal wattage	Beam angle	Luminous flux	Dimmable
LED SUP DL 105 6W 930 WV	6.00 W	65 °	750 lm	No
LED SUP DL 105 6W 930 WV	6.00 W	65 °	750 lm	No
LED SUP DL 105 6W 940 WV	6.00 W	65 °	780 lm	No
LED SUP DL 105 6W 940 WV	6.00 W	65 °	780 lm	No
LED SUP DL 105 6W 965 WV	6.00 W	65 °	780 lm	No
LED SUP DL 105 6W 965 WV	6.00 W	65 °	780 lm	No
LED SUP DL 150 9W 930 WV	9.00 W	65 °	1200 lm	No
LED SUP DL 150 9W 930 WV	9.00 W	65 °	1200 lm	No
LED SUP DL 150 9W 940 WV	9.00 W	65 °	1260 lm	No
LED SUP DL 150 9W 940 WV	9.00 W	65 °	1260 lm	No
LED SUP DL 150 9W 965 WV	9.00 W	65 °	1260 lm	No
LED SUP DL 150 9W 965 WV	9.00 W	65 °	1260 lm	No
LED SUP DL 150 12W 930 WV	12.00 W	65 °	1600 lm	No
LED SUP DL 150 12W 930 WV	12.00 W	65 °	1600 lm	No
LED SUP DL 150 12W 940 WV	12.00 W	65 °	1680 lm	No
LED SUP DL 150 12W 940 WV	12.00 W	65 °	1680 lm	No
LED SUP DL 150 12W 965 WV	12.00 W	65 °	1680 lm	No
LED SUP DL 150 12W 965 WV	12.00 W	65 °	1680 lm	No
LED SUP DL 190 15W 930 WV	15.00 W	65 °	2000 lm	No
LED SUP DL 190 15W 930 WV	15.00 W	65 °	2000 lm	No
LED SUP DL 190 15W 940 WV	15.00 W	65 °	2100 lm	No
LED SUP DL 190 15W 940 WV	15.00 W	65 °	2100 lm	No
LED SUP DL 190 15W 965 WV	15.00 W	65 °	2100 lm	No
LED SUP DL 190 15W 965 WV	15.00 W	65 °	2100 lm	No
LED SUP DL 190 18W 930 WV	18.00 W	65 °	2400 lm	No
LED SUP DL 190 18W 930 WV	18.00 W	65 °	2400 lm	No
LED SUP DL 190 18W 940 WV	18.00 W	65 °	2520 lm	No
LED SUP DL 190 18W 940 WV	18.00 W	65 °	2520 lm	No
LED SUP DL 190 18W 965 WV	18.00 W	65 °	2520 lm	No
LED SUP DL 190 18W 965 WV	18.00 W	65 °	2520 lm	No

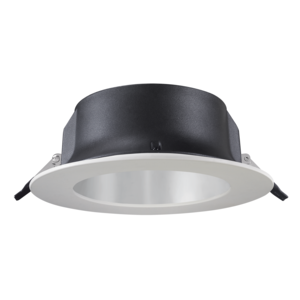

LED SUP DL 105 6W 930 WV

Product benefits

Energy savings thanks to system efficacy of up to 140lm/W
High color rendering makes this product an ideal solution for attractive lighting tasks
Low UGR design ensures comfortable lighting in indoor applications
High-grade aluminum housing and front ring ensure reliable operation
Various CCT options and wattages provide more choices
Good glare reduction (UGR < 19)
Safety compliance certificates: CB, EU RoHS 2.0
Type of protection: IP54 (room side) provides additional protection against humidity
Low maintenance costs thanks to a lifetime of up to 50,000 h

View all details

Product data sheet

PRODUCT DETAILS

Technical data

Electrical data

Nominal wattage	6.00 W
Nominal voltage	100…277 V
Mains frequency	50…60 Hz
Power factor λ	0.90
Protection class	II
Operating mode	External LED driver

Photometrical data

Luminous flux	750 lm
Luminous efficacy	125 lm/W
Color temperature	3000 K
Light color (designation)	Warm White
Color rendering index Ra	90
Flickering metric (Pst LM)	-
Stroboscope effect metric (SVM)	-
Photobiological safety group acc. to EN62471	RG0
Beam angle	65 °
UGR	< 19

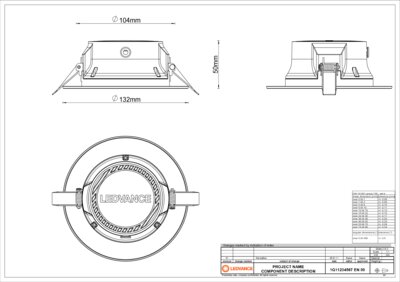

Dimensions & Weight

Diameter	132.00 mm
Height	50.00 mm
Product weight	260.00 g

Materials & Colors

Product color	White
Housing color	White
Body material	Aluminum
Glow Wire Test according to IEC 60695-2-12	650 °C
Mercury content	0.0 mg

Application & Mounting

Ambient temperature range	-20…+45 °C
Temperature range at storage	-20…+80 °C
Type of connection	Cable, 2-pole
Type of protection	IP54/IP20
Protection class IK (shock resistance)	IK02
Dimmable	No
Mounting type	Recessed
Mounting location	Ceiling
Application environment	Indoor
Mounting depth	≥ 30 mm
With light source	Yes

Lifespan

Lifespan L70/B50 at 25 °C

50000 h ¹⁾

¹⁾ t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Certificates & Standards

Replaceable light source (EPREL)

Not replaceable

Additional product data

BEG eligible

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product description

Product benefits

Energy savings thanks to system efficacy of up to 140lm/W
High color rendering makes this product an ideal solution for attractive lighting tasks
Low UGR design ensures comfortable lighting in indoor applications
High-grade aluminum housing and front ring ensure reliable operation
Various CCT options and wattages provide more choices
Good glare reduction (UGR < 19)
Safety compliance certificates: CB, EU RoHS 2.0
Type of protection: IP54 (room side) provides additional protection against humidity
Low maintenance costs thanks to a lifetime of up to 50,000 h

Areas of application

Offices
Shops
Hotels, restaurants
Corridors

Product features

High system efficiency up to 140 lm/W
100-277 V wide voltage operation models available
Color rendering index R_a: > 90
Available in 6W, 9W, 12W, 15W and 18W
Standard CCT: 4000K, 6500K & 3000K
Power factor: > 0.9
Flicker free driver
EMC suppression circuit in driver
Type of protection: IP54 (frontside), IP20 (backside)

GTIN and Packaging information

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4099854157707	Folding box 1	174 mm x 74 mm x 177 mm	377.00 g	2.28 dm³
4099854157714	Shipping box 30	543 mm x 390 mm x 385 mm	12442.00 g	81.53 dm³
