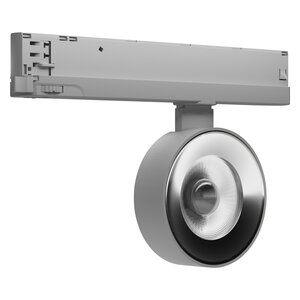

TRACKLIGHT SPOT COMPACT

TRACKLIGHT SPOT COMPACT

Choose your product version

D100 28 W 930 FL BK

D100 28 W 930 FL GY

D100 28 W 930 FL WT

D100 28 W 930 NFL WT

D100 28 W 930 NFL BK

D100 28 W 930 NFL GY

D100 28 W 940 FL BK

D100 28 W 940 FL GY

D100 28 W 940 FL WT

D100 28 W 940 NFL GY

D100 28 W 940 NFL WT

D100 28 W 940 NFL BK

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
TR SP COMPACT D100 28 W 930 FL BK 28.00 W 100000 36 ° 2200 lm No
TR SP COMPACT D100 28 W 930 FL GY 28.00 W 100000 36 ° 2200 lm No
TR SP COMPACT D100 28 W 930 FL WT 28.00 W 100000 36 ° 2200 lm No
TR SP COMPACT D100 28 W 930 NFL WT 28.00 W 100000 25 ° 2280 lm No
TR SP COMPACT D100 28 W 930 NFL BK 28.00 W 100000 25 ° 2280 lm No
TR SP COMPACT D100 28 W 930 NFL GY 28.00 W 100000 25 ° 2280 lm No
TR SP COMPACT D100 28 W 940 FL BK 28.00 W 100000 36 ° 2300 lm No
TR SP COMPACT D100 28 W 940 FL GY 28.00 W 100000 36 ° 2300 lm No
TR SP COMPACT D100 28 W 940 FL WT 28.00 W 100000 36 ° 2300 lm No
TR SP COMPACT D100 28 W 940 NFL GY 28.00 W 100000 25 ° 2380 lm No
TR SP COMPACT D100 28 W 940 NFL WT 28.00 W 100000 25 ° 2380 lm No
TR SP COMPACT D100 28 W 940 NFL BK 28.00 W 100000 25 ° 2380 lm No


TR SP COMPACT D100 28 W 930 FL BK

Product benefits
  • Timeless design suitable for high-quality interior
  • Included 3-phase adapter compatible with common tracks (NORLUX, GLOBAL, NUCO, NORDIC)
  • No distraction of attention from the illuminated objects thanks to reduced design
  • Low flicker light thanks to special electronic control gear
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 28.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 120 mA
Inrush current 20 A
Inrush current time Th50 < 500 µs
Max. number of luminaires per miniature circuit breaker B16 25
Max. number of luminaires per miniature circuit breaker C16 40
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class II
Operating mode Integrated LED driver

Photometrical data

Luminous flux 2200 lm
Luminous efficacy 80 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra 90
Standard deviation of color matching ≤3 sdcm
Luminous intensity -
Low flicker Yes
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG1
Beam angle 36 °

Dimensions & Weight

Length 260.00 mm
Height 160.00 mm
Width 33.00 mm
Product weight 400.00 g

Materials & Colors

Product color Black
Housing color Black
Body material Aluminum
Cover material Polymethylmethacrylate (PMMA)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+35 °C
Type of connection Adapter, 3-phase
Type of protection IP20
Protection class IK (shock resistance) IK03
Dimmable No
Mounting type Surface
Mounting location Mounting track
Application environment Indoor
Adjustable Yes
Replaceable light source (EPREL) Not replaceable
With light source No

Lifespan

Lifespan L70/B50 at 25 °C 80000 h 1)
Lifespan L80/B10 at 25 °C 50000 h 1)
Lifespan L90/B10 at 25 °C 35000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

ECG - Output voltage 27…42 V
ECG - Output ripple current < 3 %

Certificates & Standards

Standards CE, CB, ENEC, TÜV SÜD, EAC, RoHS
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Timeless design suitable for high-quality interior
  • Included 3-phase adapter compatible with common tracks (NORLUX, GLOBAL, NUCO, NORDIC)
  • No distraction of attention from the illuminated objects thanks to reduced design
  • Low flicker light thanks to special electronic control gear
  • 5 years guarantee
Areas of application
  • Direct replacement for luminaires using HID lamps
  • Accent lighting
  • Fashion shops, accessories shops
  • Retail
  • Hotels, restaurants, shops
Product features
  • Compact tracklight spot with in-track control gear
  • Made in Germany
  • Luminaire efficacy: up to 85 lm/W
  • Rotation angle: 350°, tilt angle: 90°
  • Very good color rendering index Ra: 90
  • Color rendering index Ra9: > 60
  • Initial color consistency: ≤ 3 SDCM
  • Available with beam angle: 25°, 36°
  • Follows the unified LEDVANCE design language (SCALE design)
  • Robust die-cast aluminum housing
  • Available in matt white (like RAL9010), matt black (like RAL9005) and concrete grey (like RAL7042)
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075335943 Folding box
1		 114 mm x 114 mm x 264 mm 513.00 g 3.43 dm³
4058075335950 Shipping box
4		 239 mm x 239 mm x 280 mm 2292.00 g 15.99 dm³

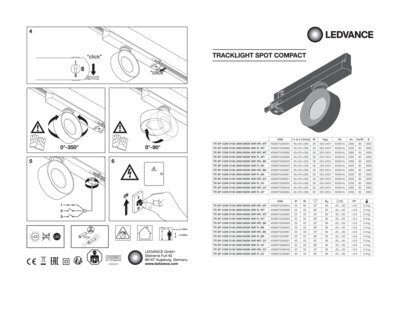

User Instruction / Safety Instructions
UI_TRACKLIGHT SPOT COM PACT PDF (1.74 MB)

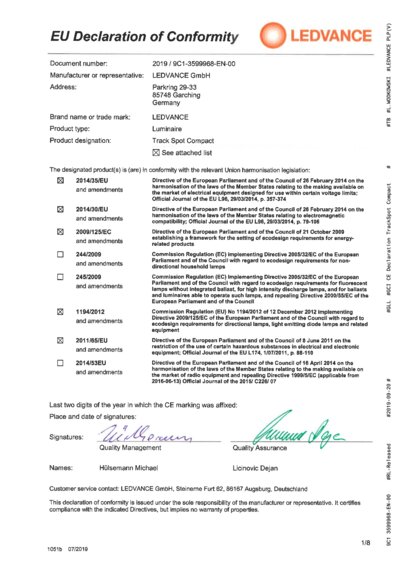

Declarations of conformity
TRACK SPOT COMPACT PDF (348.71 KB)

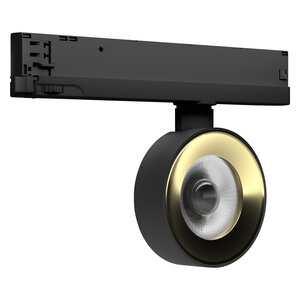

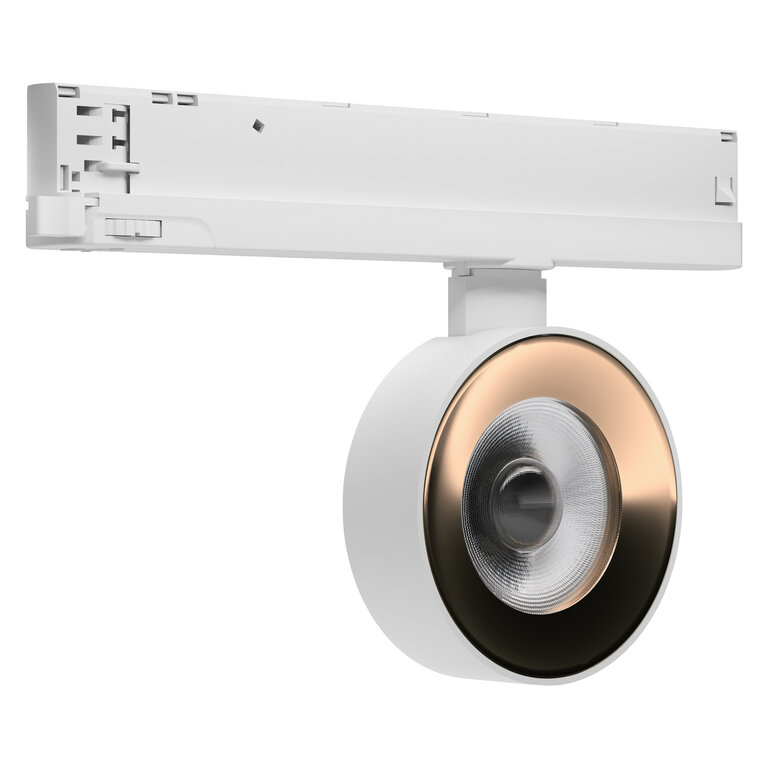

Product Image, Diagonal, White BG
TR SP COM D100 28W 90R FL BK JPG (2.38 MB)

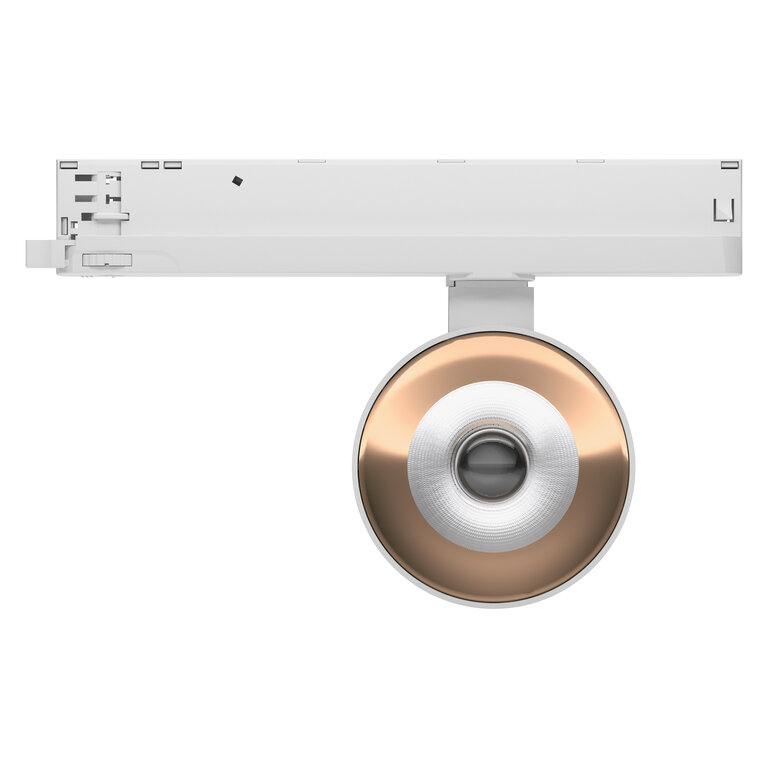

Product Image, Upright, White BG
TR SP COM D100 28W 90R FL BK JPG (1.79 MB)
Product line drawing with letters
TR SP COM D100 28W 90R FL BK SVG (26.77 KB)
Product line drawing with numbers
TR SP COM D100 28W 90R FL BK SVG (36.17 KB)
Prod.line drw, front, no dimensions
TR SP COM D100 28W 90R FL BK SVG (22.92 KB)

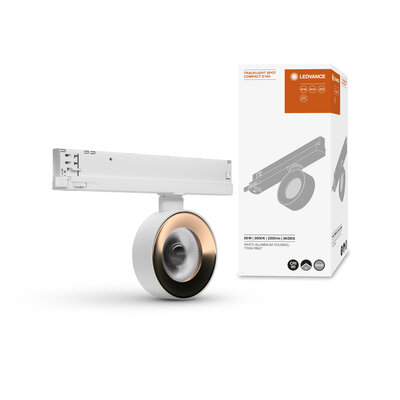

Combo Shot = Product Beauty Shot + Packaging Image
Tracklight Spot Compac t D100 28W 36DEG 930 F L BK GD MiG JPG (1.38 MB)
Packaging image, spacial
Tracklight Spot Compac t D100 28W 36DEG 930 F L BK GD MiG TIF (7.17 MB)
Catalog info 1
Tracklight Spot Compac t 1 SVG (35.62 KB)
Catalog info 2
Tracklight Spot Compac t 2 SVG (80.69 KB)
Catalog info 3
Tracklight Spot Compac t 3 SVG (31.16 KB)
Catalog info 4
Tracklight Spot Compac t 4 SVG (64.25 KB)
IES file (IES)
TR SP COM D100 28W 300 0K 90R FL BK IES (2.74 KB)
LDT file (Eulumdat)
TR SP COM D100 28W 300 0K 90R FL BK LDT (3.31 KB)
LDC typ polar
TR SP COM D100 28W 300 0K 90R FL BK SVG (277.22 KB)
LDC typ polar
TR SP COM D100 28W 300 0K 90R FL BK SVG (225.24 KB)
Tender documents
TRACKLIGHT SPOT COMPAC T D100 28 W 930 FL BK- EN TXT (1.15 KB)
EAN SEG number STK number ELDAS number
4058075335943 7402582 4266656 941600470
