Product description |
---|
UVC DULUX S 5W G23 |

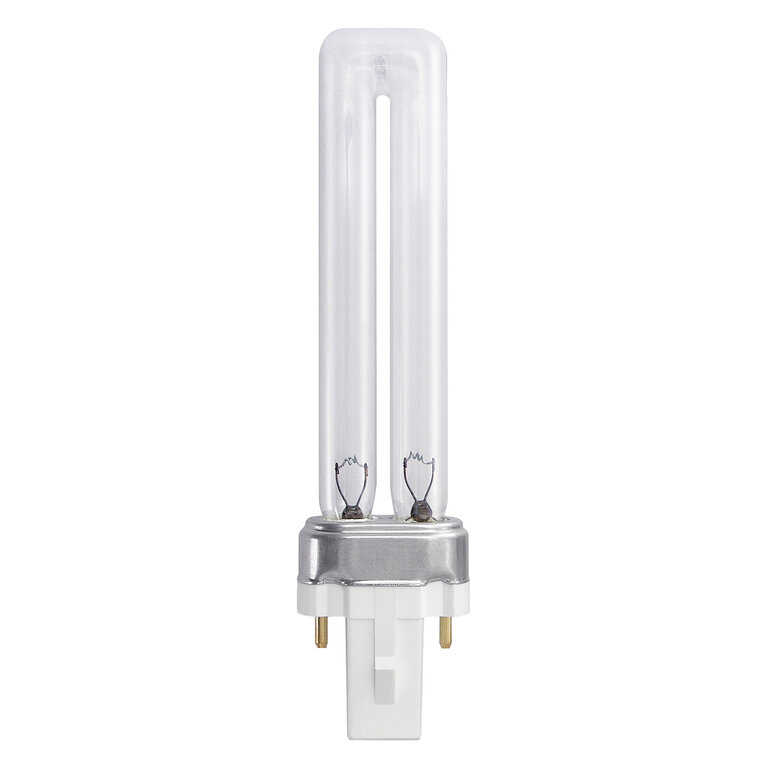

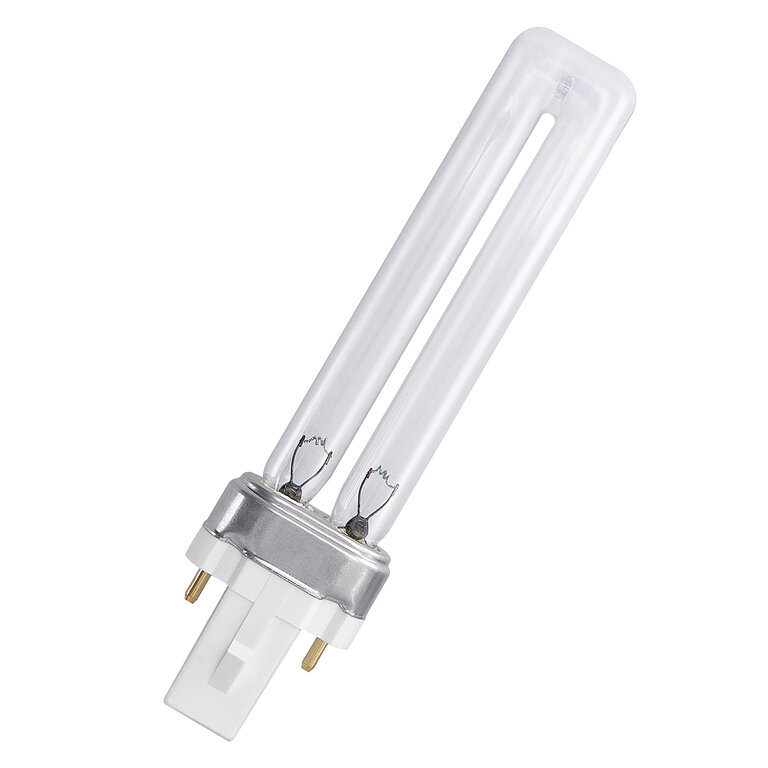

UVC DULUX S 7W G23 |
UVC DULUX S 9W G23 |
UVC DULUX S 11W G23 |
Nominal wattage | 7 W |
Nominal voltage | 46 V |
Nominal current | 175 mA |
Operating frequency | 50…60 Hz |
Mains frequency | 50…60 Hz |
Radiated power 200…280 nm (UVC) | 1.9 W |
Starting time | 30.0 s |
Overall length | 136.50 mm |
Length | 136.50 mm |
Length with base excl. base pins/connection | 113.5 mm |
Outer bulb [PICOS] | T11 |
Diameter | 11.00 mm |
Tube diameter | 11,0 mm |
Product weight | 19.9 g |
Ambient temperature range | +10…+50 °C |
Nominal lamp life time | 9500 h |
Base (standard designation) | G23 |
Mercury content | 1.6 mg |
Dimmable | No |
Burning position | Any |
Standards | CE |
Photobiological safety group acc. to EN62778 | RG3 |
Order reference | UVC DULUX S 7W |
Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
---|---|---|---|---|
4058075595668 | Folding box 1 |
23 mm x 36 mm x 139 mm | 35.00 g | 0.12 dm³ |
4058075595675 | Shipping box 10 |
190 mm x 53 mm x 152 mm | 353.00 g | 1.53 dm³ |
EAN | STK number |
---|---|
4058075595668 | 4933216 |
