Product description |
---|

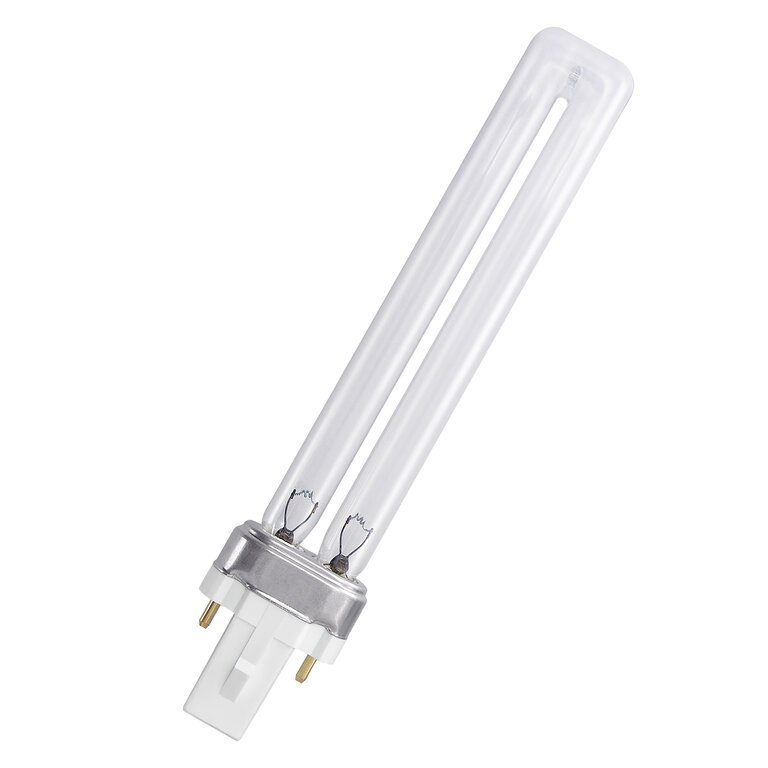

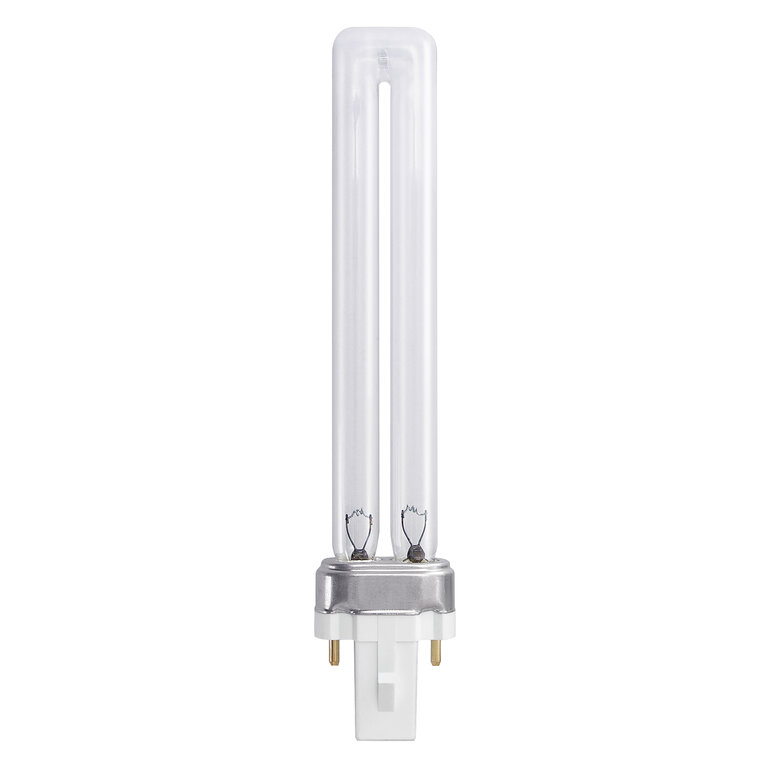

UVC DULUX S 5W G23 |
UVC DULUX S 7W G23 |
UVC DULUX S 9W G23 |
UVC DULUX S 11W G23 |
Nominal wattage | 9 W |
Nominal voltage | 60 V |
Nominal current | 170 mA |
Operating frequency | 50…60 Hz |
Mains frequency | 50…60 Hz |
Radiated power 200…280 nm (UVC) | 2,6 W |
Starting time | 30.0 s |
Overall length | 166.50 mm |
Length | 166.50 mm |
Length with base excl. base pins/connection | 143.5 mm |
Outer bulb [PICOS] | T11 |
Diameter | 11.00 mm |
Tube diameter | 11,0 mm |
Product weight | 22.6 g |
Ambient temperature range | +10…+50 °C |
Nominal lamp life time | 9500 h |
Base (standard designation) | G23 |
Mercury content | 1.6 mg |
Dimmable | No |
Burning position | Any |
Standards | CE |
Photobiological safety group acc. to EN62778 | RG3 |
Order reference | UVC DULUX S 9W |
Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
---|---|---|---|---|
4058075595743 | Folding box 1 |
36 mm x 23 mm x 171 mm | 41.00 g | 0.14 dm³ |
4058075595750 | Shipping box 10 |
190 mm x 53 mm x 184 mm | 398.00 g | 1.85 dm³ |
EAN | STK number |
---|---|
4058075595743 | 4933217 |
