Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|
| CANOPY COMP V 60W 840 IP66 DIM | 60.00 W | 100000 | 110 ° | 8100 lm | Yes |
| CANOPY COMP V 60W 857 IP66 DIM | 60.00 W | 100000 | 110 ° | 8100 lm | Yes |
| CANOPY COMP V 95W 840 IP66 DIM | 95.00 W | 100000 | 110 ° | 12825 lm | Yes |
| CANOPY COMP V 95W 857 IP66 DIM | 95.00 W | 100000 | 110 ° | 12825 lm | Yes |
| CANOPY COMP V 145W 840 IP66 DIM | 145.00 W | 100000 | 110 ° | 19575 lm | Yes |
| CANOPY COMP V 145W 857 IP66 DIM | 145.00 W | 100000 | 110 ° | 19575 lm | Yes |
| Nominal wattage | 60.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 275.000 mA |
| Inrush current time Th50 | 714 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 5 |
| Max. number of luminaires per miniature circuit breaker C10 | 5 |
| Max. number of luminaires per miniature circuit breaker C16 | 8 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 15 % |
| Protection class | I |
| Operating mode | Integrated LED driver |
| Luminous flux | 8100 lm |
| Luminous efficacy | 135 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | 80 |
| Standard deviation of color matching | < 5 sdcm |

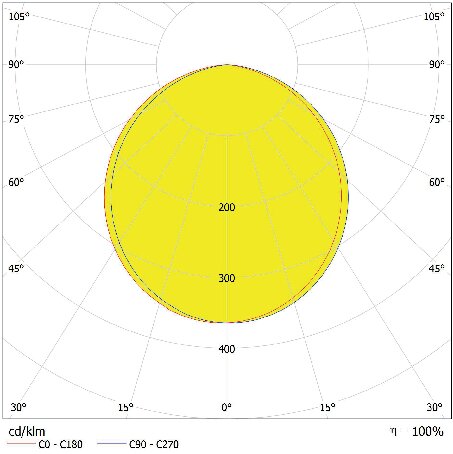

| Luminous intensity | 2800 cd |
| Low flicker | Yes |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0,4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG1 |
| Beam angle | 110 ° |

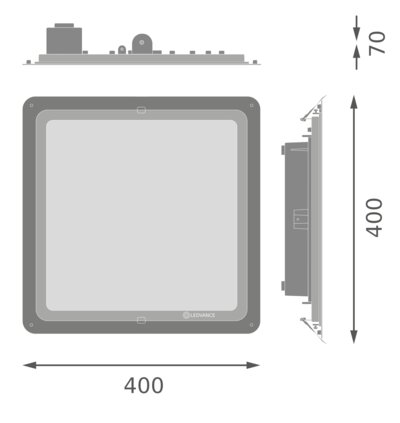

| Length | 400.00 mm |
| Height | 70.00 mm |
| Width | 400.00 mm |
| Product weight | 3200.00 g |
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Cover material | Glass |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -40…+50 °C |
| Temperature range at storage | -40…+80 °C |
| Type of connection | Screwless terminal, 3-POLE (L, N, PE) |
| Type of protection | IP66/IP66 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | Yes |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Adjustable | No |
| LED module replaceable | By the end consumer |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 80000 h 1) |
| Lifespan L80/B10 at 25 °C | 50000 h 1) |
| Lifespan L90/B10 at 25 °C | 25000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Output current | 275 mA |
| ECG - Output ripple current | < 5 % |

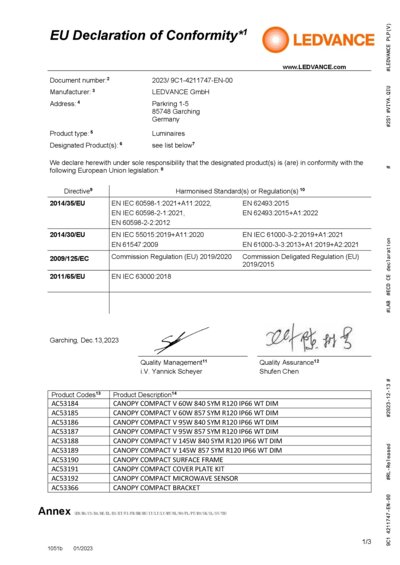

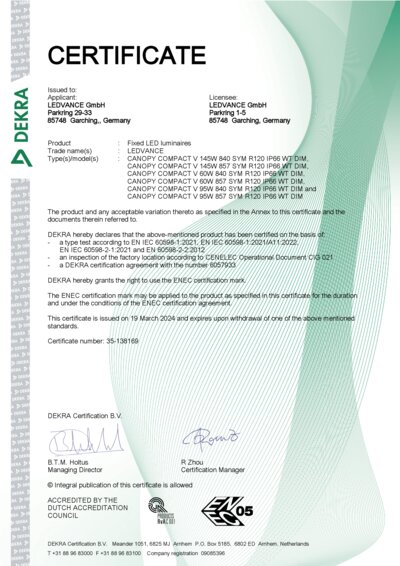

| Standards | CE, LVD, EMC, ROHS, REACH, SLR, ENEC |
| Luminaire with limited surface temperature, "D sign" | No |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854182501 | Folding box 1 |
430 mm x 430 mm x 110 mm | 3574.00 g | 20.34 dm³ |
| 4099854182518 | Shipping box 3 |
454 mm x 354 mm x 478 mm | 11352.00 g | 76.82 dm³ |
